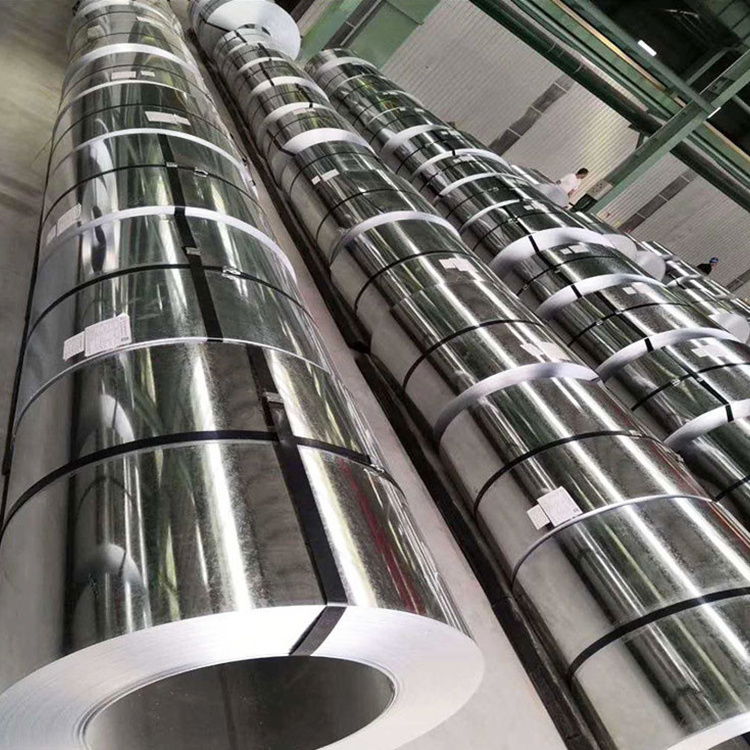

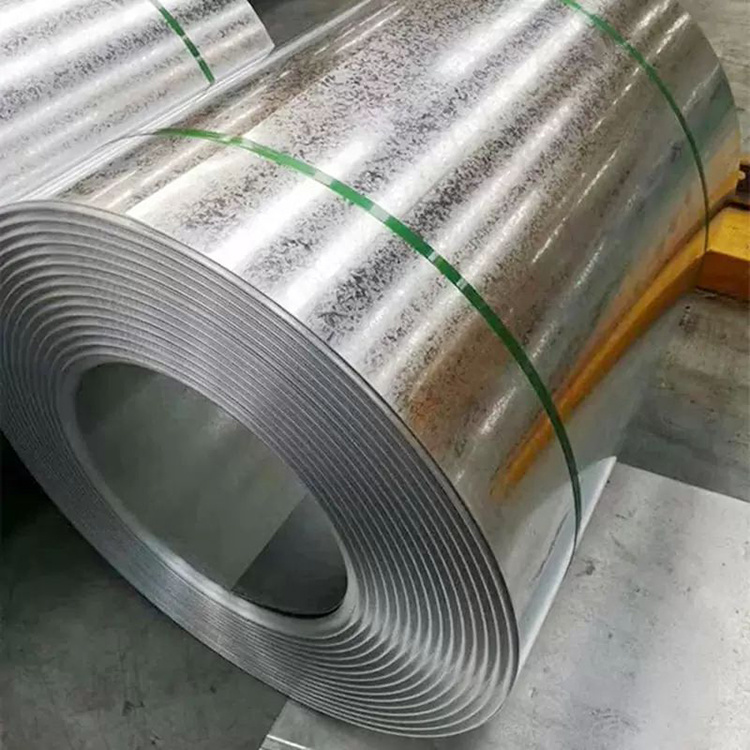

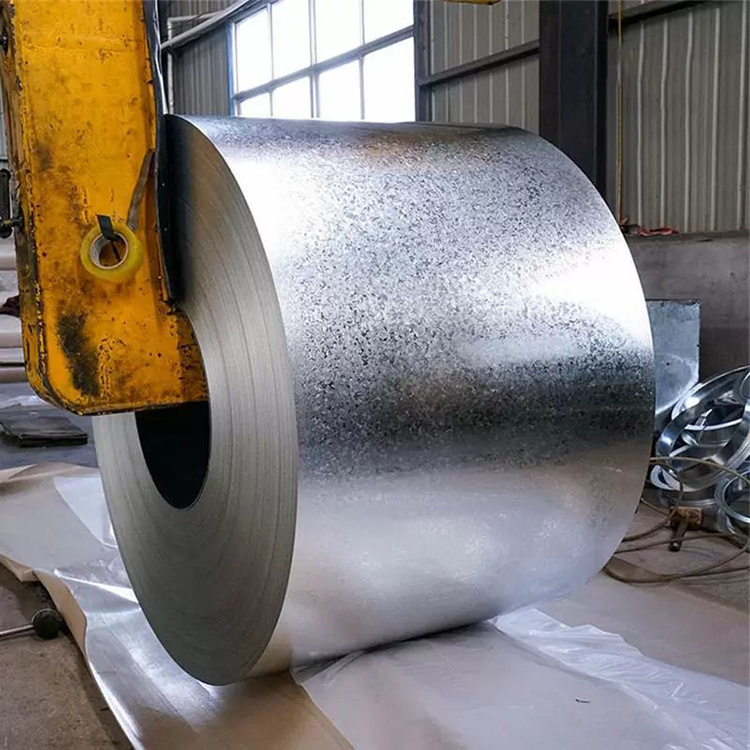

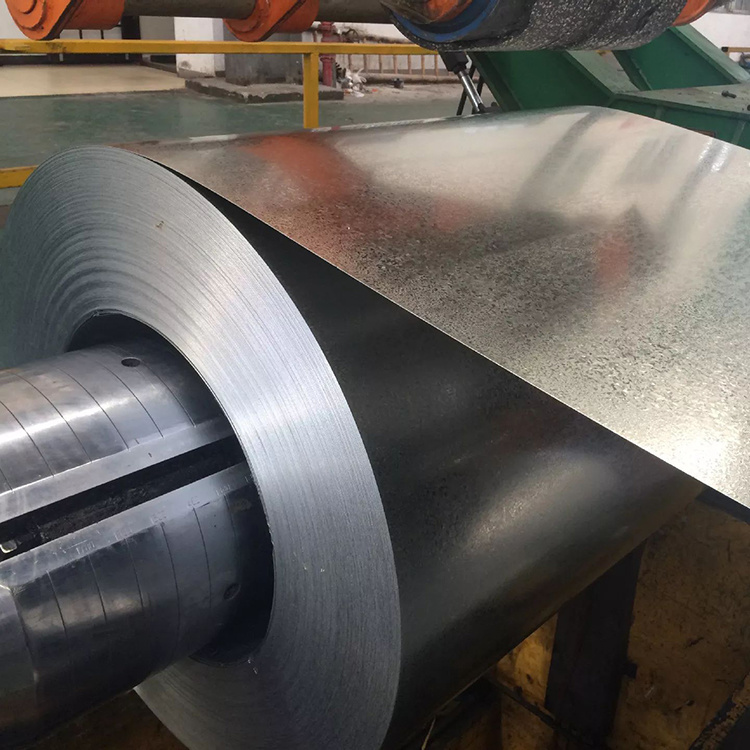

DX51D Galvanized Steel Coil
SXY Steel Group manufactures architectural and industrial-grade EN 10142 DX51D galvanized steel coils, meticulously processed through state-of-the-art continuous hot-dip zinc-coating lines. Specifically engineered for extreme lock-forming accuracy, complex profiling, and corrugated roofing geometries, our high-yield galvanized strips offer uniform spangle finishes and long-lasting atmospheric corrosion defense.
Every production batch undergoes non-destructive Elcometer coating mass testing, professional tension leveling to eliminate edge waves, and strict mechanical adhesion checks. Secure your structural mill capacity today via our 2-hour rapid technical quoting channel before raw material index pricing and ocean freight spot rates fluctuate.
Tired of slow email responses while your commercial bidding window opens or your manufacturing timeline approaches? Eliminate non-compliance structural risks and secure your verified zinc-coating test logs immediately.
PRODUCT DETAILS
Commercial Bending & Profiling Galvanized Steel Three-Standard Cross Matrix
| European Standard (EN) | American Standard (ASTM) | Japanese Standard (JIS) | Mechanical Aptitude | Core Material Performance Profile |
|---|---|---|---|---|
| EN 10142 DX51D / DC01 | ASTM A653 / A653M CS Type A/B | JIS G3302 SGCC | Lock-Forming Quality | Coating mass Z40-Z275 g/m². Excellent coating adhesion prevents flaking during tight 180-degree lock-seaming. High economic value for HVAC ducting, industrial profiling, and agricultural cladding. |
| EN 10142 DX52D | ASTM A653 FS Type A/B | JIS G3302 SGCD1 | Drawing Grade | Optimized chemical composition for mild stamping, deep profile channels, and unyielding multi-axis bending without crack initiation or micro-fracturing. |
| EN 10142 DX53D / DX54D | ASTM A653 DDS / EDDS | JIS G3302 SGCD2 / SGCD3 | Deep Drawing / Extra Deep | Maximized elongation thresholds (≥36%) designed specifically for high-strain components, complicated automotive stamping panels, and specialized industrial enclosures. |
• Certified Structural Mill Tracking: All product shipments come paired with complete EN 10204 3.1 Mill Test Certificates (MTC) detailing precise ladle chemistry analysis, mechanical load limits, and zinc adhesion test evaluations.
• Corporate Capital Safeguards: To manage cross-border commercial liquidity risks, we support major supply contracts under 100% Irrevocable Letters of Credit (L/C) at sight.
• Heavy-Duty Ocean Safeguards: Coils are wrapped tightly with high-grade waterproof VCI paper, a corrugated protective outer steel jacket, heavy-gauge steel edge guards, and multiple structural tie-down strapping bands pinned to robust wooden skids.
• Extended Free Port Storage: SXY Steel Group coordinates 14 to 21 days of complementary container demurrage at your destination port to give your logistics team an ample customs clearance buffer.
| Item | Specification |
|---|---|
| Product Name | DX51D / SGCC Galvanized Coil |
| Thickness | 0.12mm – 3.5mm |
| Width | 600mm – 1500mm |
| Length | 508mm / 610mm (Customizable) |
| Standard | AISI, ASTM, DIN, JIS, GB, SUS, EN, etc. |
| Zinc Layer | Hot-Dip Galvanizing: 60–275 g/m² Pre-Galvanized: 80–275 g/m² |
| Coating Type | Zinc (Hot-Dip or Pre-Galvanized) |
| Substrate Material | Low-Carbon Steel with Good Formability |
| Application | Roofing, Wall Cladding, Ductwork, Appliances, Cabinets, Non-Structural Automotive Parts |
| Formability Grade | DX51D (EN 10346) / SGCC (JIS G 3302) |
| Key Feature | Good Cold Formability with Zinc Corrosion Protection |
| Process | Hot-Dip Galvanizing or Continuous Pre-Galvanizing |
| Surface Finish | Standard, Spangle, Skin Pass, Oiled, Chromated |
| Certification | ISO 9001, EN 10346, JIS G 3302, etc. |
| Packaging | Standard Seaworthy Coil Packing, Customizable |
| Delivery Time | 15–45 Days (Depending on Quantity & Specification) |
| Payment Terms | T/T, L/C, etc. |
Chemical Composition
| Standard | Grade | C | Si | Mn | P | S | Ti |
|---|---|---|---|---|---|---|---|
| For Cold Forming Chinese Standard | DX51D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 |
| DX52D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX53D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX54D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX56D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX57D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| For Cold Forming Japanese Standard | SGCC | 0.15 | 0.50 | 0.80 | 0.050 | 0.030 | 0.025 |
| SGCD1 | 0.12 | 0.50 | 0.60 | 0.040 | 0.030 | 0.025 | |
| SGCD2 | 0.10 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| SGCD3 | 0.08 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| SGCD4 | 0.06 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| For Structure Japanese Standard | SGC340 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.025 |
| SGC400 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.150 | |
| SGC440 | 0.25 | 0.50 | 2.00 | 0.200 | 0.035 | 0.150 | |
| SGC490 | 0.30 | 0.50 | 2.00 | 0.200 | 0.035 | 0.025 | |
| SGC550 | 0.30 | 0.50 | 2.50 | 0.200 | 0.035 | 0.025 | |
| For Structure AISI Standard | S220GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 |
| S250GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S280GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S320GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S350GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 | |
| S550GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 |
| Grade | Yield Strength MPa ≥ | Tensile Strength MPa ≥ | Elongation A% ≥ |
|---|---|---|---|
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | – |
Galvanized Surface Selection
| Zero Spangle | Minimized Spangle | Normal Spangle | Large Spangle |
 |  |  |  |
| Use of The Environment | Recommended Zinc Thickness |
|---|---|
| Indoor Use | Z10 or Z12 (100g/m² or 120g/m²) |
| Suburbs | Z20 and Painting (200g/m²) |
| Urban or Industrial Area | Z27 (270g/m²) or G90 (US Standard) and painted |
| Coastal Area | Thicker than Z27 (270g/m²) or G90 (US Standard) and painted |
| Punch or Deep Drawing Application | Thicker than Z27 (270grams/m²) or G90 (US Standard) avoid coating peeling after stamping |
| Surface Treatment Type | Code | Features |
|---|---|---|
| Chromic Acid Treatment | C | Good corrosion resistance, suitable for bare state |
| Chromic Acid Treatment+Oiling | S | Good corrosion resistance |
| Phosphoric Acid Treatment (Including Sealing Treatment) | P | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling | Q | Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
| Phosphoric Acid Treatment (Excluding Sealing Treatment) | T | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling | V | Has a certain corrosion resistance, good paint performance, and prevent rust |
| Oiling | O | Prevent rust during transportation and storage |
| No Treatment | M | Suitable for immediate painting |
Material Comparison
| Chinese Standard | Japan Standard | European Standard |
|---|---|---|
| DX51D Z/DC51D Z (CR) | SGCC | DX51D Z |
| DX52D Z/DC52D Z | SGCD1 | DX52D With |
| DX53D Z/DC53D Z/DX54D Z/DC54D Z | SGCD2/SGCD3 | DX53D Z/DX54D Z |
| S220/250/280/320/350/550GD Z | SGC340/400/440/490/570 | S220/250/280/320/350GD Z |
| DX51D Z/DD51D Z (HR) | SGHC | DX51D Z |
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

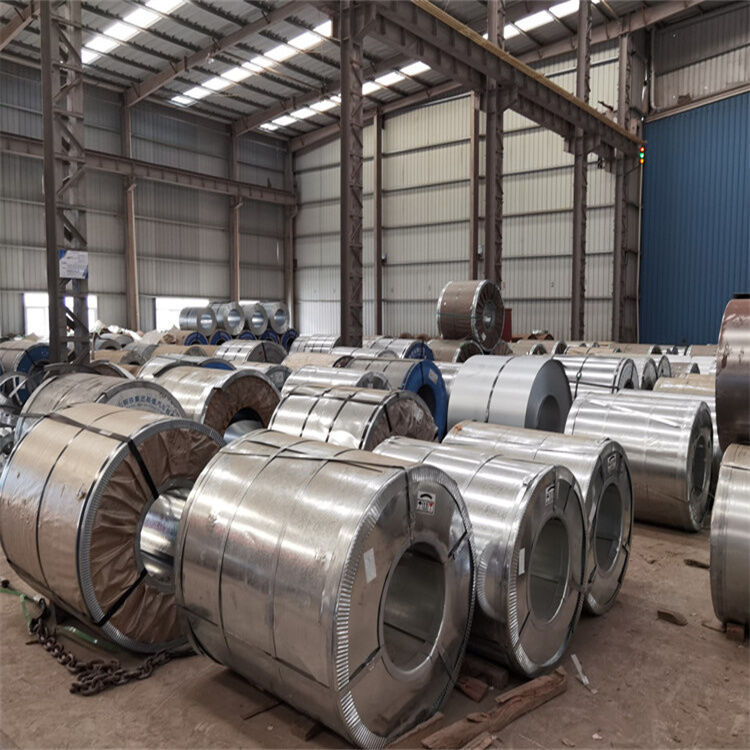

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Slitting Line Layout Optimization & Structural Component Nesting Evaluation
Submitting precise structural sizing plans for architectural roll-forming equipment, corrugated profile lines, or local wholesale stock supply? Upload your custom coil strip widths, maximum target roll weights, inner/outer bore parameters, or project Bill of Materials (BOM) files below. The industrial engineering team at SXY Steel Group will quickly process a nesting configuration model to minimize scrap material loss and optimize your total purchasing layout.
