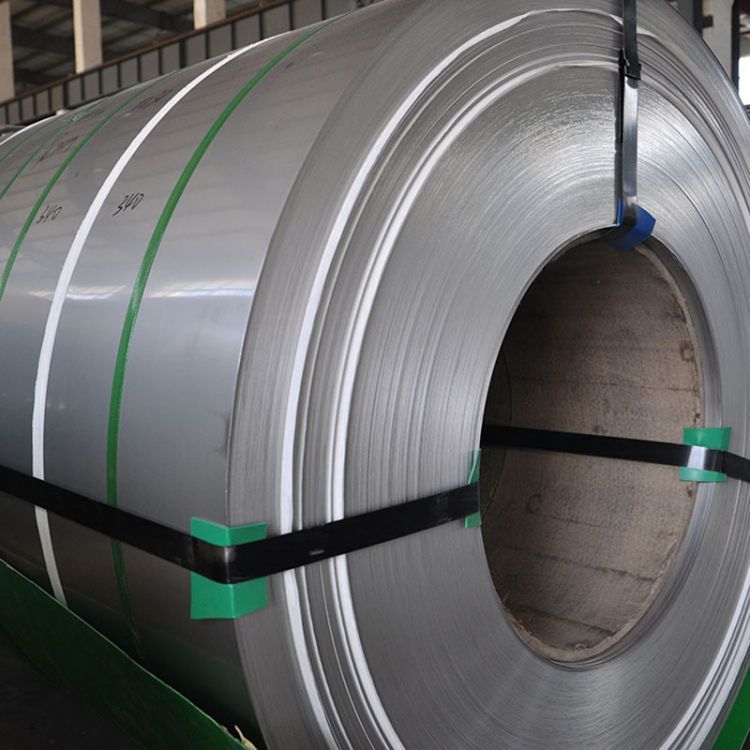

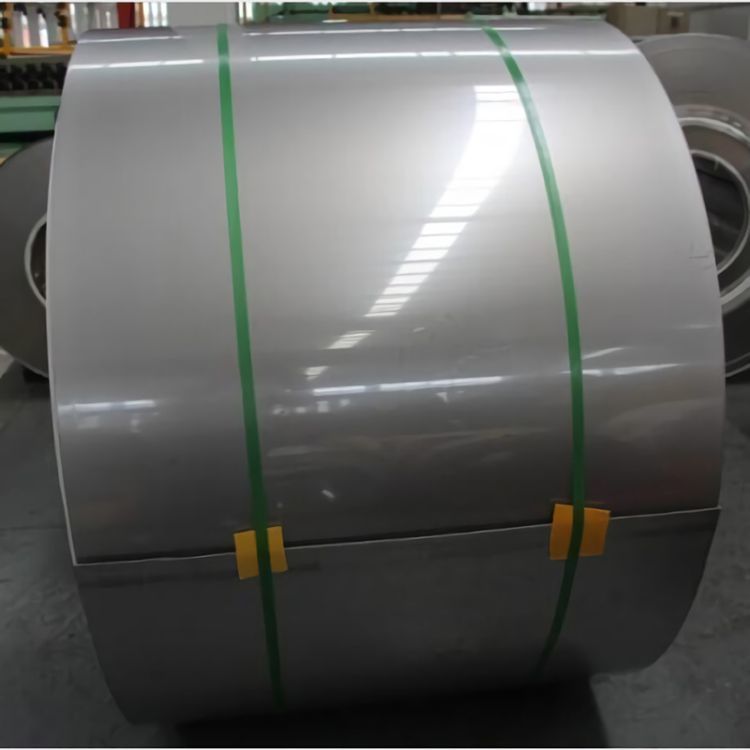

430 Stainless Steel Coil
SXY Steel Group manufactures premium-grade ASTM A240 430 ferritic stainless steel coils, precision-engineered with a high-chromium composition (16.0-18.0% Cr) and zero nickel content to achieve superior, cost-stable structural performance. Specially optimized for high-speed stamping, shallow drawing, and roll-forming operations, our 430 stainless steel strips offer excellent resistance to atmospheric corrosion, nitric acid exposure, and thermal oxidation up to 870°C, combined with specialized magnetic properties ideal for domestic appliances, automotive trim, and commercial catering equipment.
Every precision-milled lot features strict shape-correction stretch leveling, rigid gauge/width tolerance controls, and mandatory automated visual surface defect scanning. Safeguard your production timeline and bypass localized allocation delays by tapping into our guaranteed 2-hour technical mill pricing service before daily alloy and base metal indices shift.
Tired of slow emails while your production or bid submittal deadline is closing in? Eliminate factory material non-compliance risks and secure verified 430 grade material certificates right now.
PRODUCT DETAILS
Ferritic Stainless Steel Strip Three-Standard Cross Matrix
| American Standard (ASTM) | European Standard (EN) | Japanese Standard (JIS) | Chinese Standard (GB) | Core Material Performance Profile |
|---|---|---|---|---|
| ASTM A240 Grade 430 | EN 10088-2 1.4016 | JIS G4305 SUS430 | GB/T 3280 10Cr17 | Ferritic Microstructure, Chromium 16.0-18.0%, Nickel 0%, Magnetic, Yield ≥205 MPa, Tensile ≥450 MPa, Elongation ≥22%, Hardness ≤89 HRB. Highly Stable Pricing, Immune to Chloride Stress Corrosion Cracking (SCC) |
| ASTM A240 Grade 409 | EN 10088-2 1.4512 | JIS G4305 SUS409L | GB/T 3280 022Cr11Ti | Titanium-Stabilized (Ti 6x[C+N] min), Low Chromium (10.5-11.7%), Optimized Weldability and Thermal Shock Resistance. Engineered Primarily for Automotive Exhaust Systems and Heat Exchangers |
| ASTM A240 Grade 410S | EN 10088-2 1.4000 | JIS G4305 SUS410S | GB/T 3280 06Cr13 | Low Carbon Martensitic-Derived Ferritic Steel (Carbon ≤0.08%), Non-Hardening at High Temperatures, Exceptional Thermal Processing Capacity. Ideal for Petrochemical Fractionating Columns and Vessel Linings |
• Traceable EN 10204 3.1 Certification: Shipped with full legal mill test certificates outlining exact chemical heat analysis, mechanical yield mapping, deep-draw elongation rates, and precise Rockwell/Brinell hardness tracking. Fully integrated for independent auditing via SGS, Intertek, or Bureau Veritas.
• Financial Safety Safeguards: We eliminate cross-border enterprise capital risks by completely supporting high-volume industrial 430 contracts under 100% Irrevocable Letters of Credit (L/C) at sight.
• Fumigated Hardwood Skids & VCI Wrap: Coils are securely clamped to reinforced eye-to-sky or eye-to-wall hardwood skids, enclosed within waterproof industrial VCI corrosion-inhibitor paper, and locked tightly with high-tensile radial steel bands to block ocean salt aerosols and maritime humidity.
• Port Demurrage Liability Cushion: SXY Steel Group pre-allocates 14 to 21 days of complimentary container demurrage at your destination port to ensure your local clearance logistics have adequate operational buffers.
| Item | Specification |
|---|---|
| Name | 430 Stainless Steel Coil |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Material | 430 |
| Surface Treatment | BA / 2B / NO.1 / NO.4 / 4K / HL / 8K / EMBOSSED or according to customer requirements, etc. |
| Width | 100mm-2500mm or as required |
| Thickness | 0.1mm-4mm or as required |
| Length | As customer’s request |
| Inspection | Fully accept all the third party to test before shipment. |
| Packing | Standard Export Seaworthy Package. Suit for all kinds of transport, or as required. |
| Payment Terms | L/C, T/T |
Stainless steel coil is a thin steel plate supplied in coils, also called strip steel. There are imported and domestic products, divided into hot-rolled and cold-rolled. According to the needs of different users, we can also order a variety of special-shaped steel materials.In order to ensure that the yield strength, tensile strength, elongation and hardness of various stainless steel coils meet the requirements, the stainless steel coils must undergo heat treatment such as annealing, solution treatment, and aging treatment before delivery.
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

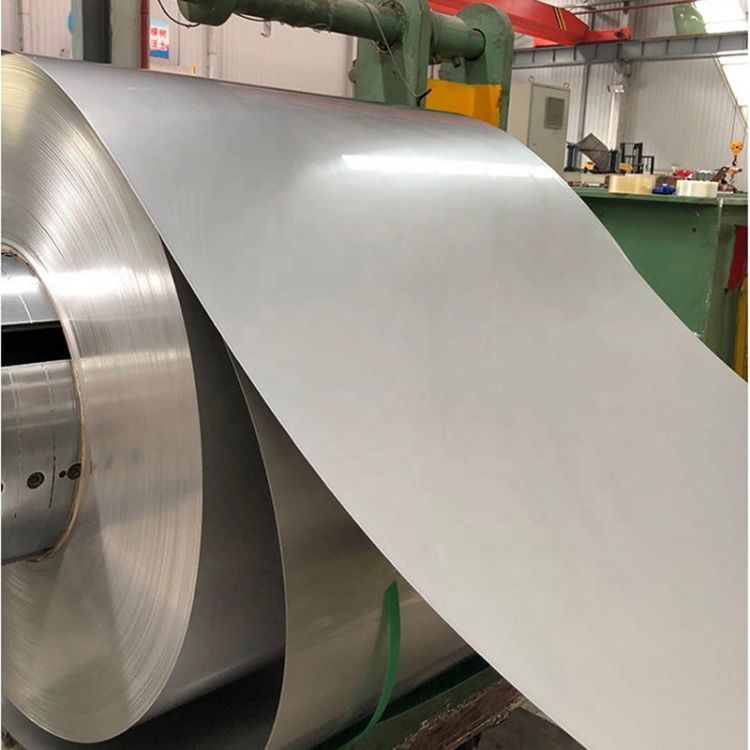

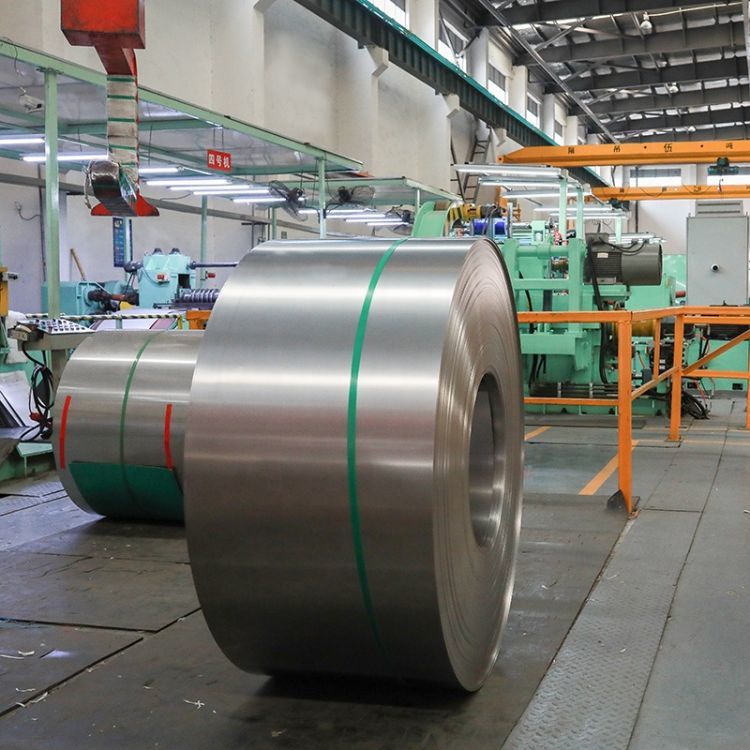

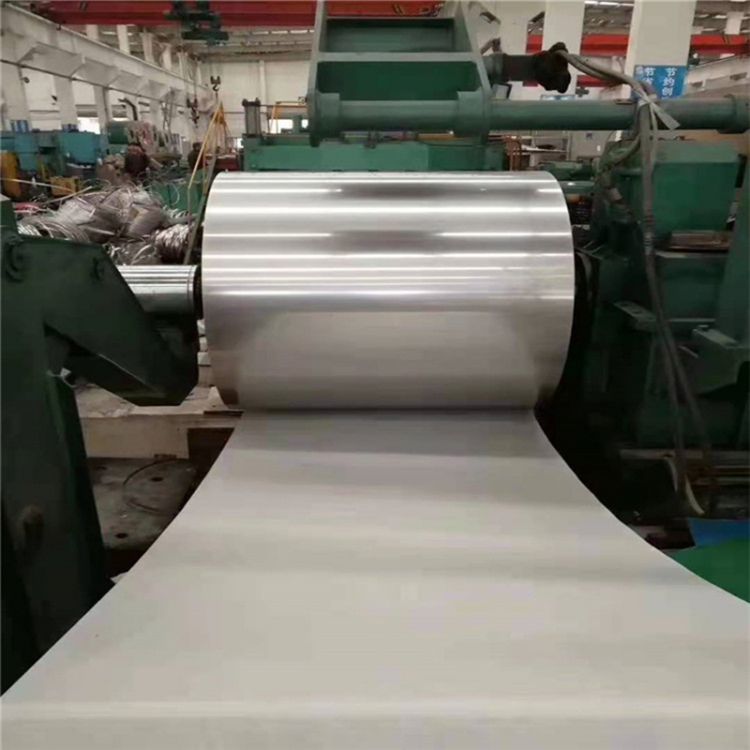

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Precision Slitting Layout Optimization & Engineering Blueprint Component Nesting Evaluation
Submitting precise structural material profiles for appliance molding, automotive stamping lines, architectural profiles, or specialized international stocking centers? Upload your target strip widths, target roll weights, inside/outside diameter boundaries, or raw engineering Bill of Materials (BOM) schematics below. The engineering division at SXY Steel Group will quickly run a dedicated nesting optimization model to maximize material utilization, slash processing scrap to zero, and protect procurement budgets.
