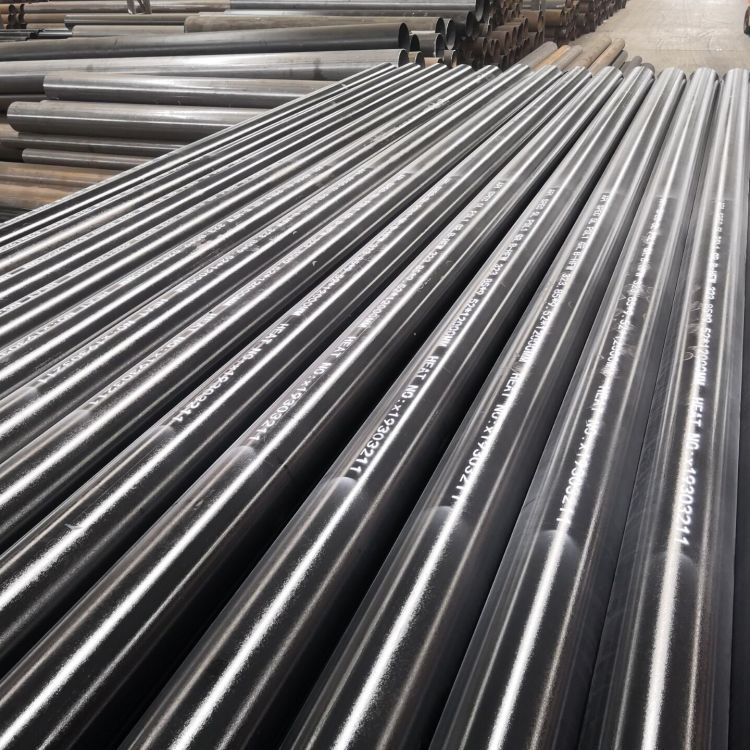

API 5L X80 Carbon Welded Steel Pipe
SXY Steel Group manufactures mill-certified API 5L X80 High Yield Carbon Welded Steel Pipes, engineered specifically for high-pressure petroleum networks, overland natural gas pipelines, and offshore critical transmission stations. We guarantee rigid structural concentricity, proven fracture toughness limits, strict wall thickness compliance, and premium anti-corrosion exterior coatings under direct [2-Hour Rapid Quote] mill terms.
Tired of slow supplier quotes while your critical project pipeline construction deadline or commercial grid bidding window approaches? Eliminate high-pressure pipeline failure risks and secure your verified X80 hydro-testing and weld inspection certificates immediately.
PRODUCT DETAILS
Premium High Yield Line Pipe Three-Standard Cross Matrix
| American Standard (API 5L) | European Standard (EN 10208-2) | International Standard (ISO 3183) | Min Yield Strength (Rpa) | Min Tensile Strength (Rm) |
|---|---|---|---|---|
| API 5L X70 (PSL2) | EN L485MB | ISO 3183 L485 | 485 MPa | 570 MPa |
| API 5L X80 (PSL2) | EN L555MB | ISO 3183 L555 | 555 MPa | 625 MPa |
| API 5L X100 (PSL2) | EN L690MB | ISO 3183 L690 | 690 MPa | 760 MPa |
Technical QA/QC Verification
• 100% Traceable Mill Certificates: Every delivery includes comprehensive EN 10204 3.1 Mill Test Certificates (MTC) presenting specific heat chemistry data, Hydrostatic testing pressure results, Charpy V-Notch impact test values, and Elcometer coating profiles. Fully ready for third-party validation by SGS, Bureau Veritas, or Intertek.
• Financial Security Guarantee: We mitigate international procurement risk completely by managing major infrastructure manufacturing supply contracts via 100% Irrevocable Letters of Credit (L/C) at sight.
Anti-Rust Packaging & Ocean Logistics
• Industrial Heavy-Load Structural Boxing: Beveled pipe ends are fitted with heavy-duty plastic or metallic protectors to eliminate face deformity during handling. Bundles are secured with dry high-load metallic strapping, anti-chafing separation slings, and heavy wood blocking built for extreme maritime stability.
• Extended Free Port Demurrage: SXY Steel Group arranges 14 to 21 days of complimentary container or breakbulk demurrage at your destination terminal to secure your domestic haulage setup and local custom clearances.
API 5L X80 Pipe is a specification for steel line pipe used in pipeline transportation systems for oil, gas, and water. API 5L X80 grade steel is designed for high-pressure applications and is used in demanding environments, including arctic regions, where high strength and excellent low-temperature toughness are required.
| Api 5l X80 Psl2 Sizes | Nominal Pipe Size 1/2″ to 48″ O.D. Wall Thickness: Schedule 10 through 160, STD, XS, XXS. |
| Api 5l X80 Erw Pipe Standard | API 5L (Specification for Line Pipe – Latest Edition, e.g., 46th Edition, 2018). Note: The referenced 44th Edition (2007) is outdated. |
| Product Specification Level (PSL) | API 5L X80 PSL 2 API 5L X80 PSL 1 |
| API 5L X80 Line Pipe Length | Single Random, Double Random & Required Length, Custom Size – Typical 12 Meter lengths or as per project specification. |
| Api Grade X80 Pipe End | Plain, Bevel, Threaded (as per API 5L and customer specification). |
| Testing and Inspection Reports | Mill Test Certificate per EN 10204 3.1 / 3.2, PMI Test, NDT Reports (UT, RT, etc.), Destructive Test Reports, Third Party Inspection Reports as required. |
| API 5L X80 Pipes Type | Seamless (SMLS) / Electric Resistance Welded (ERW) / Longitudinal Submerged Arc Welded (LSAW). Note: “CDW” is not a standard API 5L pipe type for X80 grade. |
Technical data
ASTM API 5L X80 Seamless and Welding Steel Tube Mechanical Properties:
| Grade | API 5L X80 / PSL2 (for both pipe body and weld seam of applicable pipe types) |
| Pipe body of seamless and welded pipes | Yield Strength (Min): 555 MPa (80,500 psi) Yield Strength (Max): 705 MPa (102,300 psi) Tensile Strength (Min): 625 MPa (90,600 psi) |
| Weld seam of EW, LW, SAW and COW pipe | Tensile Strength (Min): 625 MPa (90,600 psi) Tensile Strength (Max): 825 MPa (119,700 psi) Note: “COW” is not a standard welding process designation for API 5L line pipe. The common types are ERW, HFW, SAW (Longitudinal or Spiral). |
| X80 Pipe yield strength | Yield Strength (Min): 555 MPa Tensile Strength Range: 625 – 700 MPa (Typical specified range for pipe body, may vary slightly by standard edition and supplemental requirement) Elongation (Min): 20% (Typical minimum, dependent on specimen size per API 5L) Yield-to-Tensile Ratio (Max): ≤ 0.93 (Typical requirement for high-grade line pipe to ensure strain capacity, please refer to the latest API 5L specification for the exact value). |
X80 Pipe yield strength
| Grade | Permissible yield point ratio | Yield Strength MPa (min) | Tensile Strength MPa | Elongation % (min) |
|---|---|---|---|---|
| X80 | ≤ 0.90 | 555 | 625 – 700 | 20 |

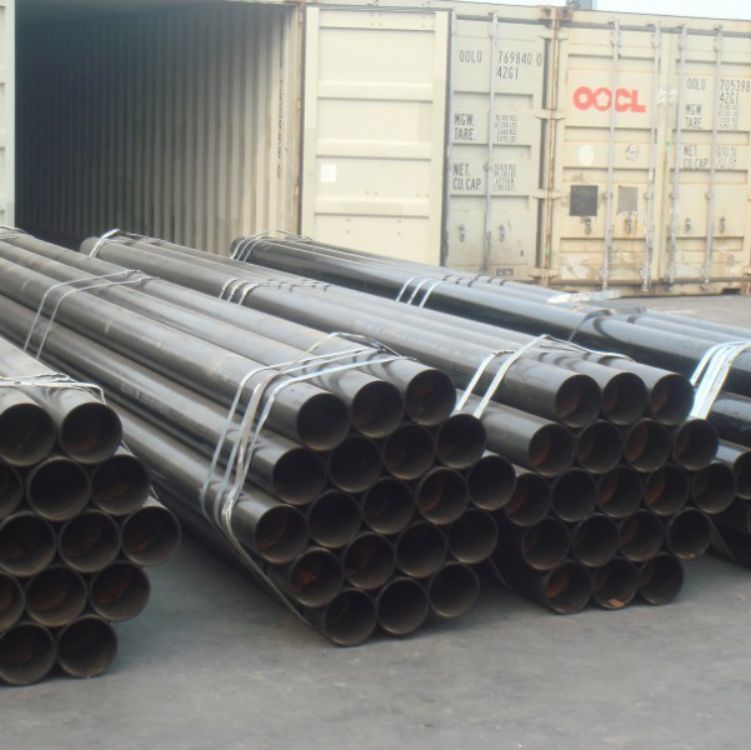

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Pipeline Mating Layout Assessment & Engineering Project BOM Optimization Report
Submitting pipeline construction layouts for oil and gas infrastructure, fluid transmission networks, or industrial plant engineering assemblies? Provide your required exact outer diameter metrics, wall thicknesses, specific lengths, fluid pressure limits, or technical Bill of Materials (BOM) designs below. The technical group at SXY Steel Group will quickly provide a structural nesting configuration plan to reduce installation waste and protect your total material investment.
