430 Stainless Steel Pipe
SXY Steel Group manufactures high-formability 430 ferritic stainless steel pipes, available in precision seamless and high-frequency welded lines. Engineered as a highly cost-effective, nickel-free solution for decorative trimming, appliance components, and mild atmospheric exhaust systems, our premium 430 piping guarantees perfect thermal fatigue resistance and excellent surface finish profiles.
Every production run adheres to strict dimensional wall-thickness tolerances and certified grain-structure tracking. Secure your prioritized container mill capacity today through our guaranteed 2-hour rapid quote service before seasonal raw material chromium indices fluctuate.
Tired of slow emails while your structural or decorative fabrication deadline closes in? Eliminate destination project rejection anxieties and lock in verified material records right now.
PRODUCT DETAILS
Ferritic & Economical Stainless Steel Three-Standard Cross Matrix
| American Standard (ASTM) | European Standard (EN) | Japanese Standard (JIS) | Chinese Standard (GB) | Core Material Performance Profile |
|---|---|---|---|---|
| ASTM A268 / A554 TP430 (UNS S43000) | EN 10028-7 / 10296-2 1.4016 | JIS G3446 / G3459 SUS430 | GB/T 30063 10Cr17 | Nickel-Free Cost Optimization, Good Corrosion Resistance in Mild Environments, Interior Architectural Trim, Automotive Exhaust Layouts |
| ASTM A268 TP410 (UNS S41000) | EN 10088-2 1.4006 | JIS G3459 SUS410 | GB/T 1220 12Cr13 | Martensitic Base, High Hardness & Mechanical Wear Resistance, Moderate Corrosion Settings, Valve Components |
| ASTM A312 TP304L (UNS S30403) | EN 10217-7 1.4307 | JIS G3459 SUS304L | GB/T 14976 022Cr19Ni10 | Austenitic Low-Carbon, Premium Ductility, Superior Marine/Chemical Fluid Performance without Hardening Properties |
• Traceable EN 10204 3.1 Documentation: Shipped with complete mill records verifying mechanical flattening, flare expansion, and eddy current defect scanning. Full witness support for SGS, Bureau Veritas, and Intertek third-party field inspectors.
• Financial Safety Architecture: SXY Steel Group safeguards global commercial capital workflows by executing high-volume commercial supply agreements under 100% Irrevocable Letters of Credit (L/C) at sight.
• Reinforced Structural Seaworthy Crate Boxing: Finished tubes are secured inside rigid plywood boxes or tensioned with heavy-duty steel bands coupled with pre-integrated lifting slings for accelerated port discharging.
• Pre-Cleared Demurrage Safety: SXY Steel Group pre-allocates 14 to 21 days of complimentary container demurrage directly with major maritime carriers to insulate structural timelines from custom clearance delays.
| Category | Details |
|---|---|
| Standard | Food Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249) Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2 Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3 Drinking water tube: GB / T 19228 Mechanical tube: ASTM A554, EN 10296-2 |
| Size | Outer Diameter Range: 9.5~2000mm Thickness Range: 0.5~20mm (Size can be customized.) Length: Up to 18.3 meters per piece. |
| Shape Section | Round, square, rectangular |
| Usage | Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on; Heat exchanger tube: condenser, boiler, super heater, evaporator and so on; Industrial pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on; Mechanical tube: handrail, railings, balustrade, hence and so on. |
Features:
1.Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of tubes could be under 0.3μm.
2.We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
6. Full material traceability is guaranteed during the manufacturing process.
7. Polished tube is supplied in individual plastic sleeves with capped ends ensuring optimum cleanliness.
8. Internal Bore: Tubes have a smooth, clean and crevice free bore.
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

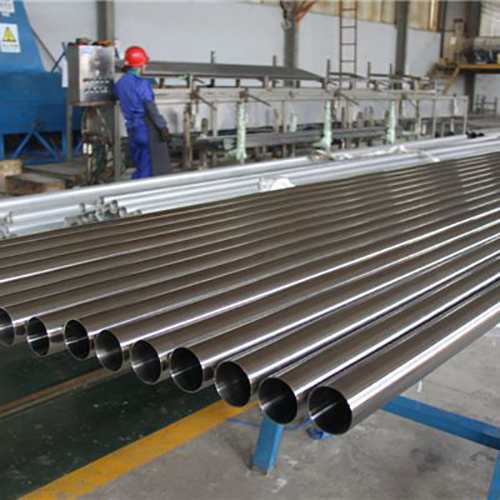

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Project Bill of Materials (BOM) Nesting Calculation & Linear Allocation Analysis
Submitting detailed commercial drafting layouts for architectural decorative installations, exhaust manifold systems, appliance manufacturing lines, or regional supply framework tenders? Paste your raw materials list or itemized Bill of Materials (BOM) into the contact field below. The technical desk at SXY Steel Group will complete a complimentary programmatic nesting computation to fully optimize layout lengths, minimize high-cost pipe offcuts, and defend your core procurement budget margins.
