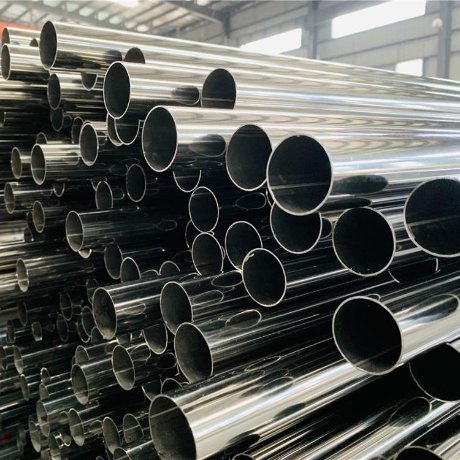

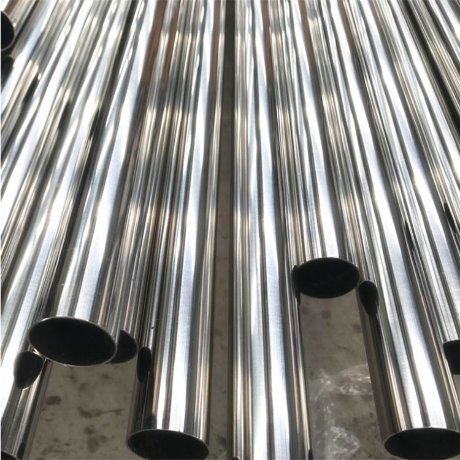

904L Stainless Steel Pipe
SXY Steel Group manufactures premium 904L super austenitic stainless steel pipes, engineered with ultra-high molybdenum and copper additions. Our 904L tubing delivers unmatched resistance to sulfuric acid, phosphoric acid, and aggressive pitting in extreme chloride-rich process environments.
Every production run ensures strict dimensional precision and fully documented grain-structure consistency. Secure your prioritized container mill capacity today via our guaranteed 2-hour rapid quote service before volatility in nickel and molybdenum alloy indices impacts your project budget.
Tired of slow emails while your high-spec chemical project deadline closes in? Eliminate destination inspection failure anxieties and lock in verified 904L alloy records right now.
PRODUCT DETAILS
Super Austenitic Stainless Steel Three-Standard Cross Matrix
| American Standard (ASTM) | European Standard (EN) | Japanese Standard (JIS) | Chinese Standard (GB) | Performance Profile |
|---|---|---|---|---|
| ASTM A312 TP904L (UNS N08904) | EN 10217-7 1.4539 | JIS G3459 SUS890L | GB/T 14976 022Cr20Ni25Mo4.5Cu | Super Austenitic, Max Acid Resistance, Petrochemical Scrubbers, Seawater Heat Exchangers |
| ASTM A312 TP317L (UNS S31703) | EN 10217-7 1.4438 | JIS G3459 SUS317L | GB/T 14976 022Cr19Ni13Mo3 | High Mo, General Chemical Processing, Pulp & Paper bleaching plant piping |
• Traceable EN 10204 3.1 Certification: Complete MTC documentation provided, supporting SGS/BV third-party site audits.
• Zero-Risk Trade: We accept 100% Irrevocable Letters of Credit (L/C) at sight for all major projects.
• Heavy-Duty Bundling: Rigid crating or high-tensile steel banding with integrated nylon lifting slings for safe crane discharge.
• Demurrage Coverage: 14-21 days of complimentary container demurrage pre-arranged to buffer your project timeline.
| Category | Details |
|---|---|
| Standard | Food Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249) Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2 Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3 Drinking water tube: GB / T 19228 Mechanical tube: ASTM A554, EN 10296-2 |
| Size | Outer Diameter Range: 9.5~2000mm Thickness Range: 0.5~20mm (Size can be customized.) Length: Up to 18.3 meters per piece. |
| Shape Section | Round, square, rectangular |
| Usage | Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on; Heat exchanger tube: condenser, boiler, super heater, evaporator and so on; Industrial pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on; Mechanical tube: handrail, railings, balustrade, hence and so on. |
Features:
1.Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of tubes could be under 0.3μm.
2.We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.
3. Thick welding, good appearance.The mechanical properties of tube could be tested.
4. The raw material is from Taigang, Baogang, Zhangpu and so on.
5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.
6. Full material traceability is guaranteed during the manufacturing process.

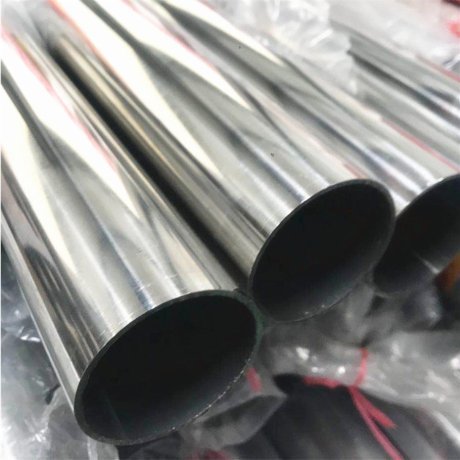

7. Polished tube is supplied in individual plastic sleeves with capped ends ensuring optimum cleanliness.
8. Internal Bore: Tubes have a smooth, clean and crevice free bore.

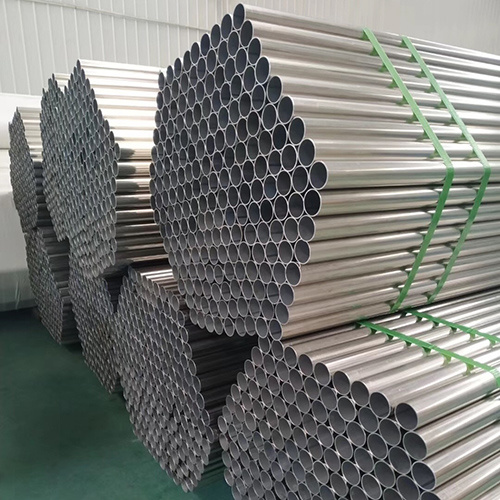

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

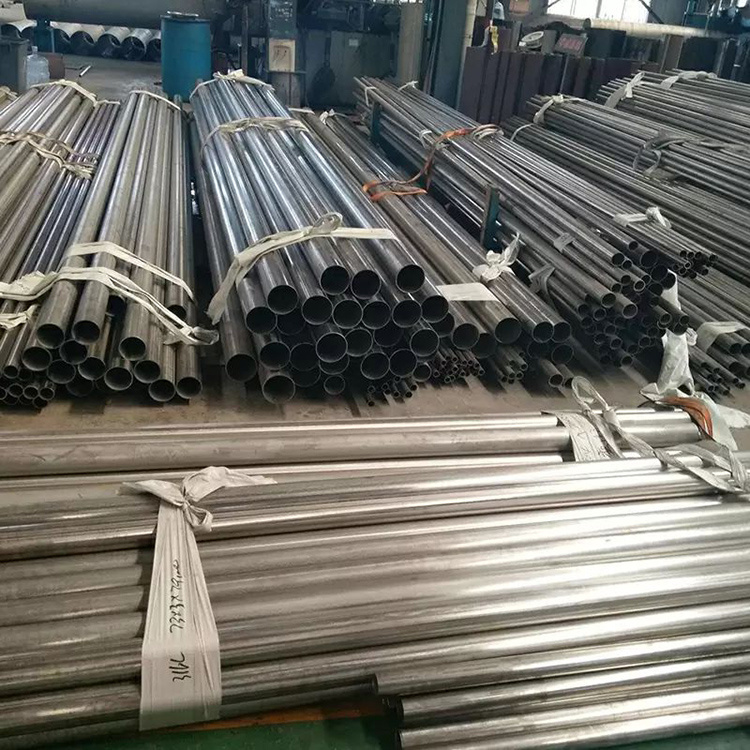

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Project Bill of Materials (BOM) Nesting Calculation & Linear Allocation Analysis
Submit your spool drawings or itemized Bill of Materials (BOM) below. The SXY Steel Group engineering team will perform a programmatic nesting computation to optimize cut lengths, minimize scrap, and defend your project budget margins.
