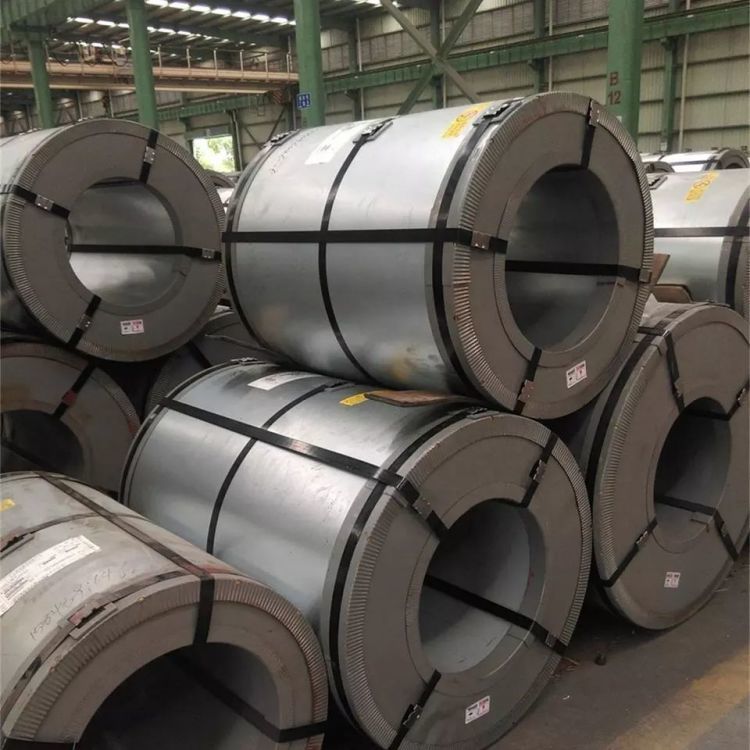

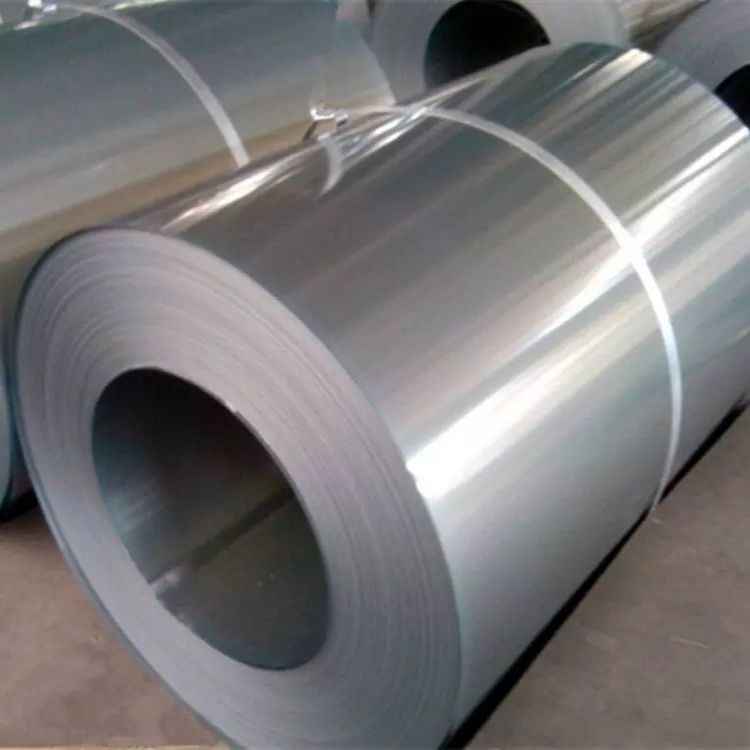

Cold Rolled Non-Grain Oriented Silicon Steel
SXY Steel Group manufactures mill-certified Cold Rolled Non-Grain Oriented (CRNGO) silicon steel coils, custom-engineered for high-frequency transformer cores, rotating machinery stators, power alternators, and magnetic shield assemblies. We guarantee uniform isotropic magnetic alignment, exceptionally low core loss thresholds (Max 2.70 W/kg at 1.5T/50Hz), high punchability structural execution, and superior interlaminar insulation under direct [2-Hour Rapid Quote] mill terms.
Struggling with slow factory responses while your commercial bidding deadline or critical motor lamination production schedule collapses? Eliminate eddy current core losses and acquire your verified CRNGO magnetic testing certificates immediately.
PRODUCT DETAILS
Premium CRNGO Silicon Steel Three-Standard Cross Matrix
| European Standard (EN 10106) | American Standard (ASTM A677) | Japanese Standard (JIS C2552) | Nominal Thickness | Max Core Loss Baseline (50Hz / 1.5T) |
|---|---|---|---|---|
| EN 50M290 | ASTM 47F230 | JIS 50A290 | 0.50 mm | ≤ 2.90 W/kg |
| EN 50M270 | ASTM 47F205 | JIS 50A270 | 0.50 mm | ≤ 2.70 W/kg |
| EN 35M250 | ASTM 36F190 | JIS 35A250 | 0.35 mm | ≤ 2.50 W/kg |
Technical QA/QC Verification
• 100% Verifiable Mill Certificates: Every batch is accompanied by comprehensive EN 10204 3.1 Mill Test Certificates (MTC) documenting explicit heat chemistry numbers, verified core loss logs, and coating insulation thickness performance. Fully prepared for inspection by SGS, Bureau Veritas, or Intertek.
• Financial Security Guarantee: We eliminate cross-border transaction risk completely by processing high-volume manufacturing export supply agreements through 100% Irrevocable Letters of Credit (L/C) at sight.
Anti-Rust Packaging & Ocean Logistics
• Industrial Seaworthy Radial Packaging: Products are enclosed within heavy-gauge outer steel covers, utilizing hard-tempered internal and external metal corner shrouds, high-load tension strapping, and fortified timber export pallet configurations.
• Extended Port Demurrage Allocations: SXY Steel Group secures 14 to 21 days of complimentary container demurrage at your destination terminal to shield local logistics workflows and customs clearance steps from storage surcharges.
| Brand Name | Nominal Thickness (mm) | Theoretical Density kg/dm³ | Max Iron Loss W/kg (P1.5/50) | Min Magnetic Induction T B5000 | Min Number of Bends | Min Stacking Factor % |
|---|---|---|---|---|---|---|
| 35WW230 | 0.35 | 7.6 | 2.3 | 1.62 | 2 | 95 |
| 35WW250 | 7.6 | 2.5 | 1.62 | 2 | ||
| 35WW270 | 7.65 | 2.7 | 1.62 | 2 | ||
| 35WW300 | 7.65 | 3 | 1.62 | 5 | ||
| 35WW360 | 7.65 | 3.6 | 1.63 | 5 | ||
| 35WW400 | 7.65 | 4 | 1.63 | 5 | ||
| 35WW440 | 7.7 | 4.4 | 1.65 | 5 | ||
| 50WW230 | 0.5 | 7.6 | 2.3 | 1.62 | 2 | 97 |
| 50WW250 | 7.6 | 2.5 | 1.62 | 2 | ||
| 50WW270 | 7.6 | 2.7 | 1.62 | 2 | ||
| 50WW290 | 7.6 | 2.9 | 1.62 | 3 | ||
| 50WW310 | 7.65 | 3.1 | 1.62 | 5 | ||
| 50WW350 | 7.65 | 3.5 | 1.62 | 5 | ||
| 50WW400 | 7.65 | 4 | 1.63 | 10 | ||
| 50WW470 | 7.7 | 4.7 | 1.64 | 10 | ||
| 50WW600 | 7.75 | 6 | 1.66 | 10 | ||
| 50WW700 | 7.8 | 7 | 1.67 | 10 | ||
| 50WW800 | 7.8 | 8 | 1.68 | 10 | ||
| 50WW1000 | 7.85 | 10 | 1.7 | 10 | ||
| 50WW1300 | 7.85 | 13 | 1.72 | 10 |

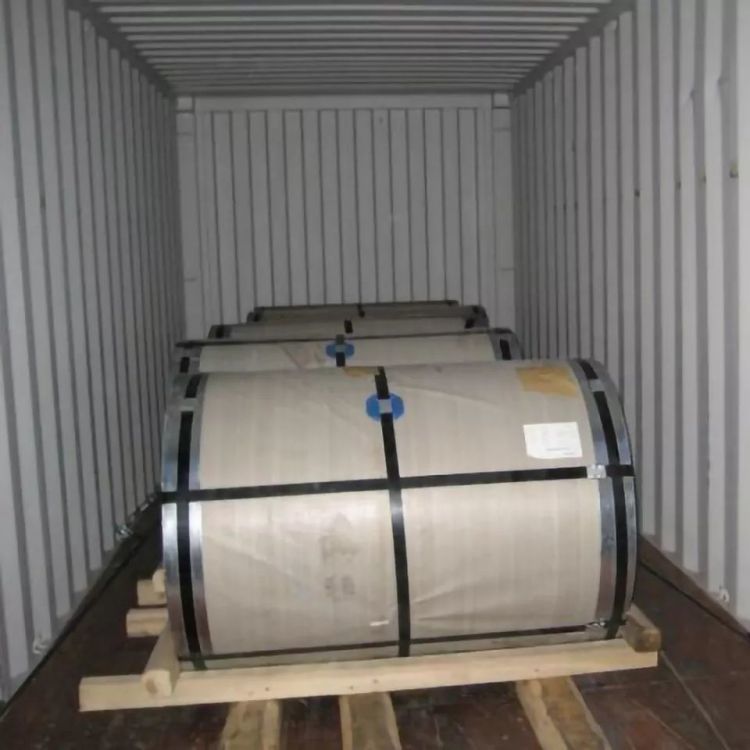

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

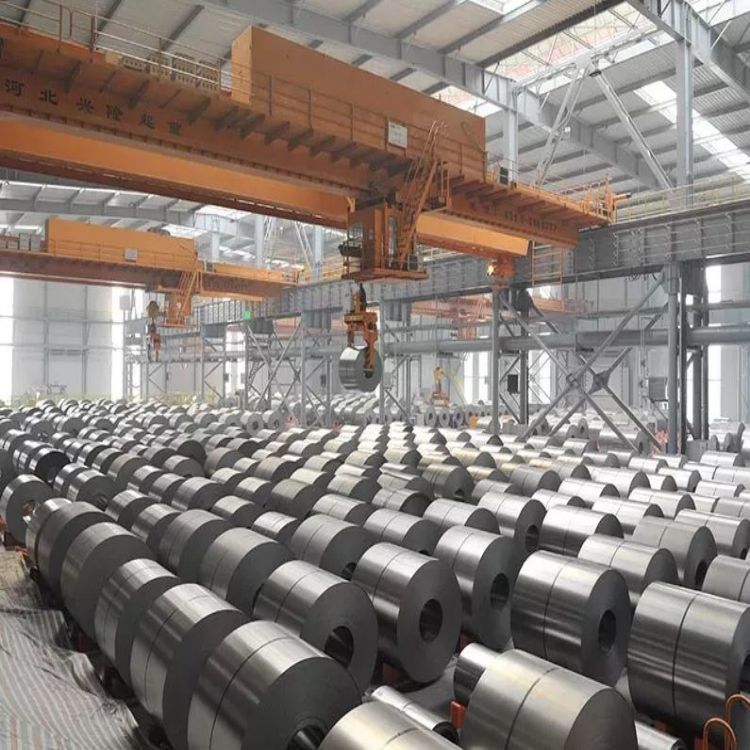

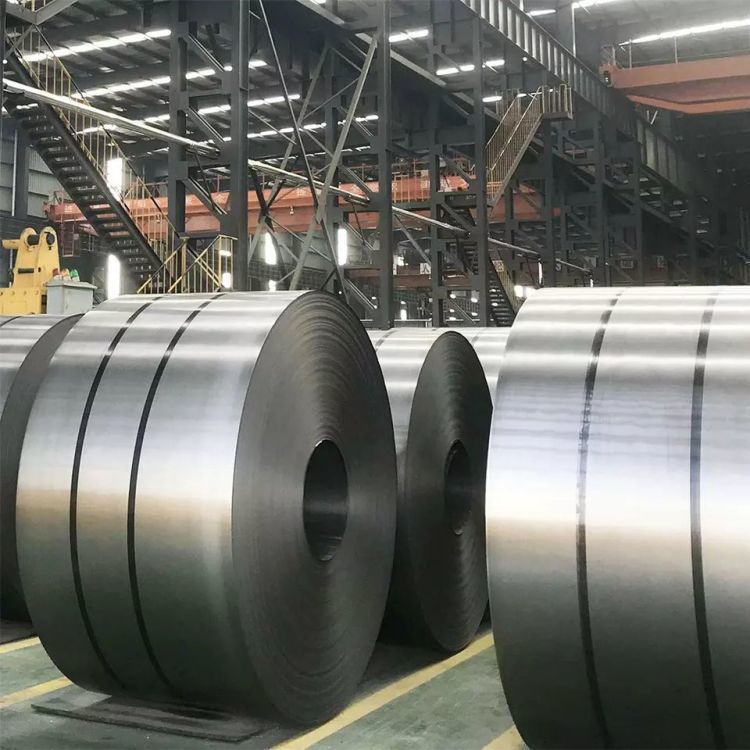

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Core Stator Slitting Optimization & Lamination Stacking Efficiency Report
Submitting technical parameters for electrical transformer frames, rotating motor assemblies, or high-speed stamping operations? Provide your exact slit width criteria, coil weight limitations, internal roll diameter specifications, or raw material Bill of Materials (BOM) designs below. The engineering department at SXY Steel Group will quickly provide a material layout optimization report to eliminate manufacturing scrap and protect total production margins.
