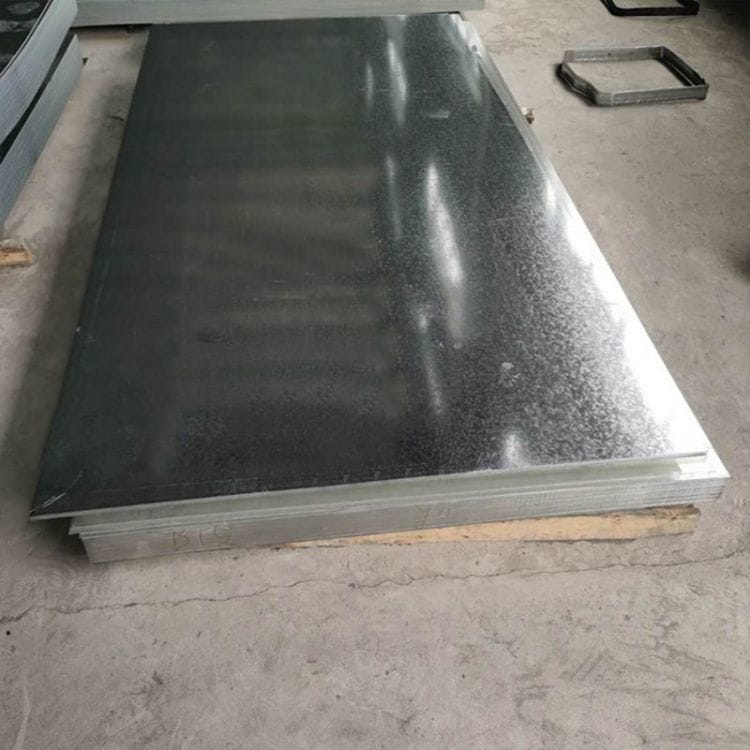

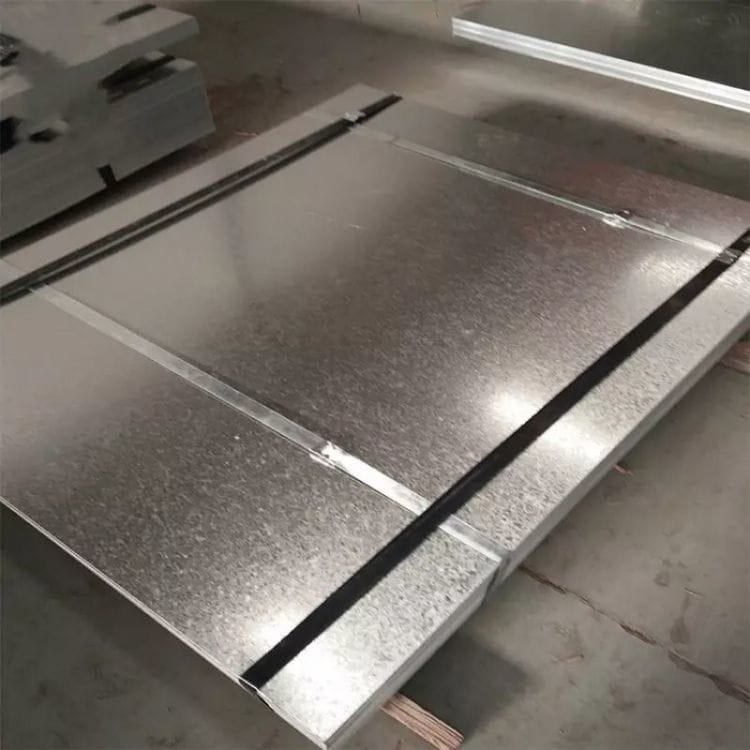

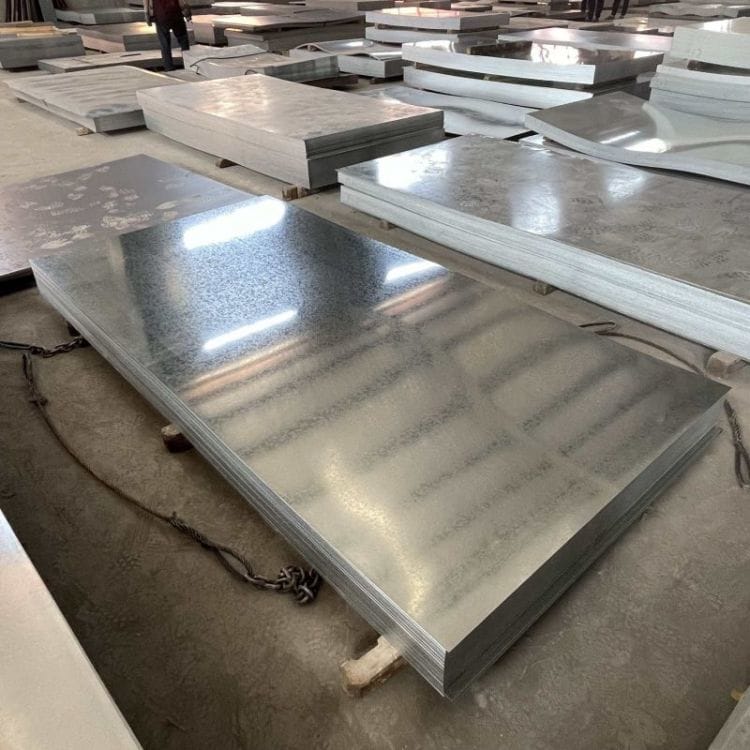

Galvanized DX51D Sheet
🔥 Stop losing structural integrity to premature atmospheric rust or failing strict engineering inspections due to inconsistent, sub-standard zinc protection layers.
SXY Steel Group manufactures industrial-grade ASTM A653 / EN 10346 DX51D Galvanized Sheets, engineered with continuous hot-dip zinc-coating integrity. Featuring regular, minimized, or zero spangle options and certified coating weights from Z80 to Z275 g/m², our sheets offer ironclad corrosion barriers for roofing, HVAC ducting, and automotive structural profiles. Lock in your material inventory today via our Guaranteed 2-Hour Rapid Quote framework before regional metal market indices shift.
Tired of slow email exchanges while your project cutoff closing date looms? Eliminate structural inspection rejection anxieties and claim your verified mill testing records instantly today.
PRODUCT DETAILS
📊 Galvanized Steel DX51D Three-Standard Global Cross-Reference Matrix
| American Standard (ASTM) | European Standard (EN) | Japanese Standard (JIS) | Available Zinc Coating Weights |
|---|---|---|---|
| ASTM A653 CS Type B / Type C | EN 10346 DX51D+Z (Commercial Quality) | JIS G3302 SGCC | Z80 / Z120 / Z180 / Z275 (Immediate Stock Plates & Coils) |
| ASTM A653 Structural SS Grade 33 / 50 | EN 10346 S250GD+Z / S350GD+Z | JIS G3302 SGC400 / SGC490 | Z200 / Z275 (High-Strength Load-Bearing Blanks) |
| ASTM A653 DDS / EDDS | EN 10346 DX53D+Z / DX54D+Z Deep Draw | JIS G3302 SGCD1 / SGCD2 | Z100 / Z140 Deep-Forming Automotive Stock (Mill Run Only) |
• Third-Party Inspecting Supported: Full collaboration with independent assessment firms (SGS, Bureau Veritas, or Intertek) to verify exact dimensional thickness thresholds, coating adhesion tests, and tension-leveling straightness metrics at the loading bay.
• Capital Protection Framework: SXY Steel Group eliminates international trade risk completely by managing all bulk supply contracts under 100% Irrevocable Letter of Credit (L/C) at sight payment pathways.
• Rigid Perimeter Steel Banding: High-tensile structural steel straps secure the layout firmly to heavy wooden or metal skids, preventing edge-buckling and internal shifting during extreme rough-sea transit cycles.
• Extended Port Demurrage Safety: 14 to 21 days free demurrage terms pre-negotiated directly with shipping networks to insulate your delivery budget from regional customs clearing bottlenecks.
| Item | Specification |
|---|---|
| Product Name | DX51D / SGCC Galvanized Sheet |
| Thickness | 0.12mm-6.00mm |
| Width | 20mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, SUS, EN, etc. |
| Zinc Layer (Hot Galvanizing) | 15-275g/m² |
| Zinc Layer (Pre-galvanized) | 15-275g/m² |
Chemical Composition
| Standard | Grade | C | Si | Mn | P | S | Ti |
|---|---|---|---|---|---|---|---|
| For Cold Forming Chinese Standard | DX51D+Z | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.100 | ≤0.045 | ≤0.30 |
| DX52D+Z | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.100 | ≤0.045 | ≤0.30 | |
| DX53D+Z | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.100 | ≤0.045 | ≤0.30 | |
| DX54D+Z | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.100 | ≤0.045 | ≤0.30 | |
| DX56D+Z / DX57D+Z | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.100 | ≤0.045 | ≤0.30 | |
| For Cold Forming Japanese Standard | SGCC | ≤0.15 | ≤0.50 | ≤0.80 | ≤0.050 | ≤0.030 | ≤0.025 |
| SGCD1 | ≤0.12 | ≤0.50 | ≤0.60 | ≤0.040 | ≤0.030 | ≤0.025 | |
| SGCD2 | ≤0.10 | ≤0.50 | ≤0.45 | ≤0.030 | ≤0.030 | ≤0.025 | |
| SGCD3 | ≤0.08 | ≤0.50 | ≤0.45 | ≤0.030 | ≤0.030 | ≤0.025 | |
| SGCD4 | ≤0.06 | ≤0.50 | ≤0.45 | ≤0.030 | ≤0.030 | ≤0.025 | |
| For Structure Japanese Standard | SGC340 | ≤0.25 | ≤0.50 | ≤1.70 | ≤0.200 | ≤0.035 | ≤0.025 |
| SGC400 | ≤0.25 | ≤0.50 | ≤1.70 | ≤0.200 | ≤0.035 | ≤0.150 | |
| SGC440 | ≤0.25 | ≤0.50 | ≤2.00 | ≤0.200 | ≤0.035 | ≤0.150 | |
| SGC490 | ≤0.30 | ≤0.50 | ≤2.00 | ≤0.200 | ≤0.035 | ≤0.025 | |
| SGC510 | ≤0.30 | ≤0.50 | ≤2.50 | ≤0.200 | ≤0.035 | ≤0.025 | |
| For Structure AISI Standard | S220GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.025 |
| S250GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.025 | |
| S280GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.025 | |
| S320GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.025 | |
| S350GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.150 | |
| S550GD+Z | ≤0.20 | ≤0.60 | ≤0.70 | ≤0.100 | ≤0.045 | ≤0.150 |
Mechanical Properties
| Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
|---|---|---|---|
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | – |
Galvanized Surface Selection
| Zero Spangle | Minimized Spangle | Normal Spangle | Large Spangle |
 |  |  |  |
| Use of The Environment | Recommended Zinc Thickness |
|---|---|
| Indoor Use | Z10 or Z12 (100g/㎡ or 120g/㎡) |
| Suburbs | Z20 and Painting (200g/㎡) |
| Urban or Industrial Area | Z27 (270g/㎡) or G90 (US Standard) and painted |
| Coastal Area | Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted |
| Punch or Deep Drawing Application | Thicker than Z27 (270g/㎡) or G90 (US Standard) avoid coating peeling after stamping |
| Surface Treatment Type | Code | Features |
|---|---|---|
| Chromic Acid Treatment | C | Good corrosion resistance, suitable for bare state |
| Chromic Acid Treatment+Oiling | S | Good corrosion resistance |
| Phosphoric Acid Treatment (Including Sealing Treatment) | P | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling | Q | Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
| Phosphoric Acid Treatment (Excluding Sealing Treatment) | T | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling | V | Has a certain corrosion resistance, good paint performance, and prevent rust |
| Oiling | O | Prevent rust during transportation and storage |
| No Treatment | M | Suitable for immediate painting |
Material Comparison
| Chinese Standard | Japan Standard | European Standard |
|---|---|---|
| DX51D Z/DC51D Z (CR) | SGCC | DX51D Z |
| DX52D Z/DC52D Z | SGCD1 | DX52D With |
| DX53D Z/DC53D Z/DX54D Z/DC54D Z | SGCD2/SGCD3 | DX53D Z/DX54D Z |
| S220/250/280/320/350/550GD Z | SGC340/400/440/490/570 | S220/250/280/320/350GD Z |
| DX51D Z/DD51D Z (HR) | SGHC | DX51D Z |

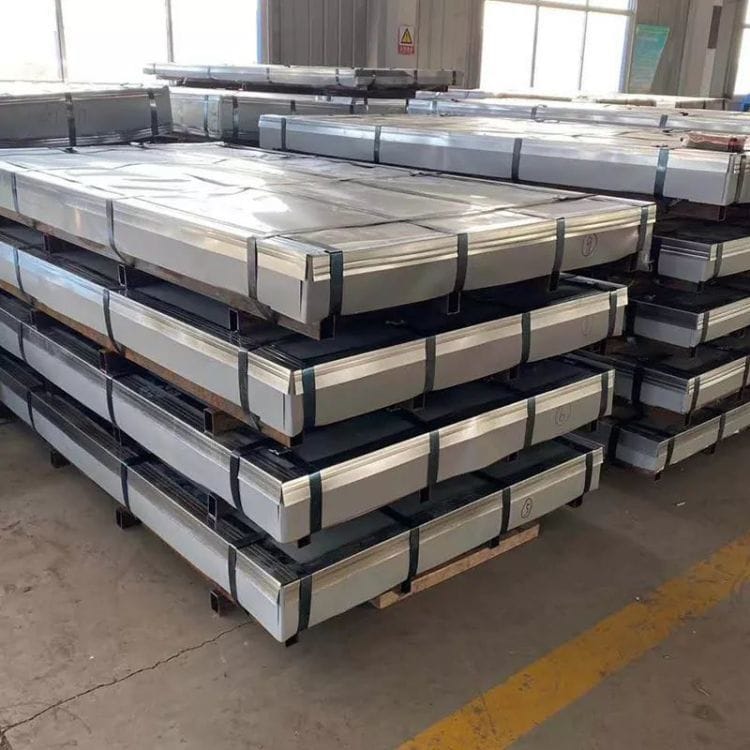

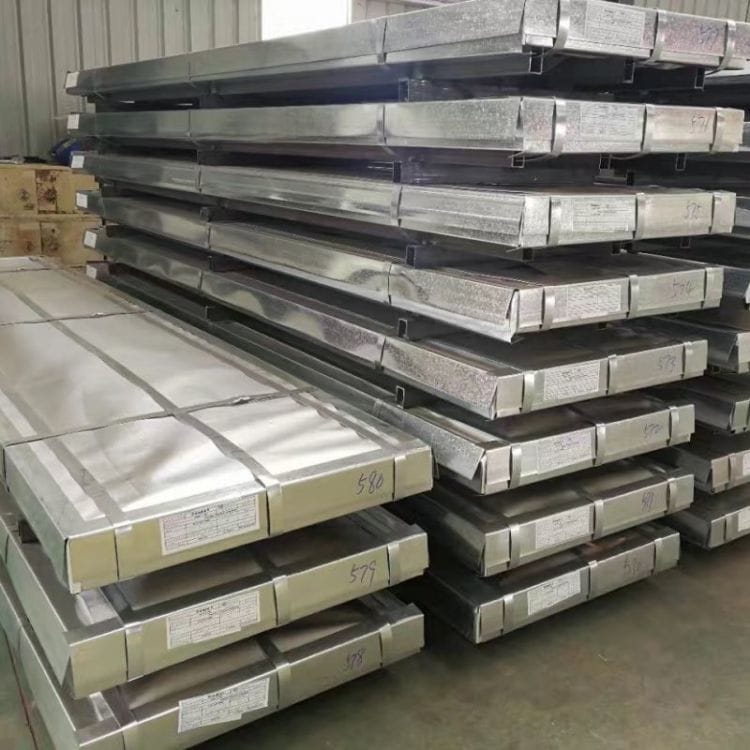

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
🔬 Secure Your Free Engineering Blueprint Nesting Analysis & Fabrication Yield Optimization
Submitting custom project profiles for roofing panels, ventilation frameworks, or light-gauge steel framing designs? Send over your part structural diagrams or comprehensive Bill of Materials (BOM). The engineering team at SXY Steel Group will run a complimentary technical nesting matrix simulation to maximize your sheet layout efficiency and reduce scrap cost factors.
