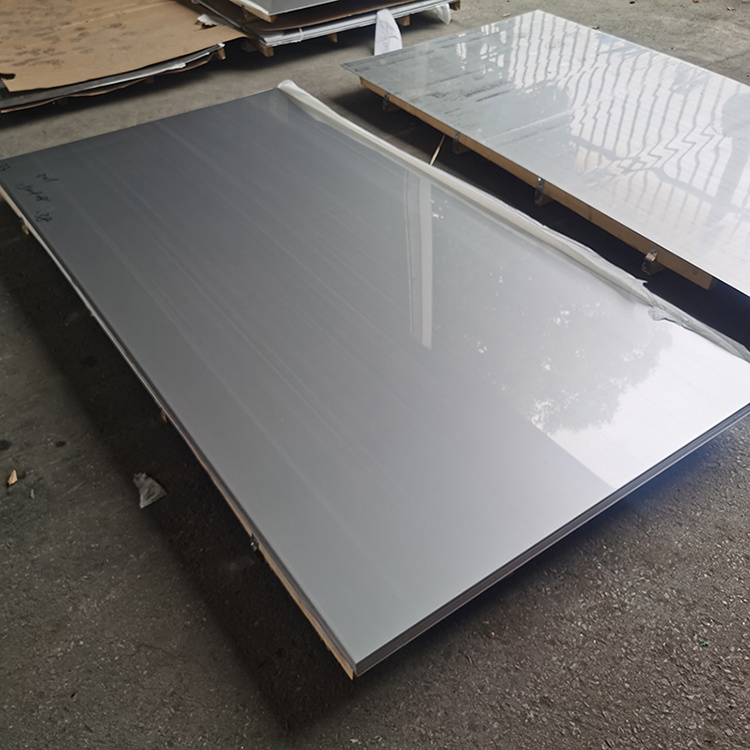

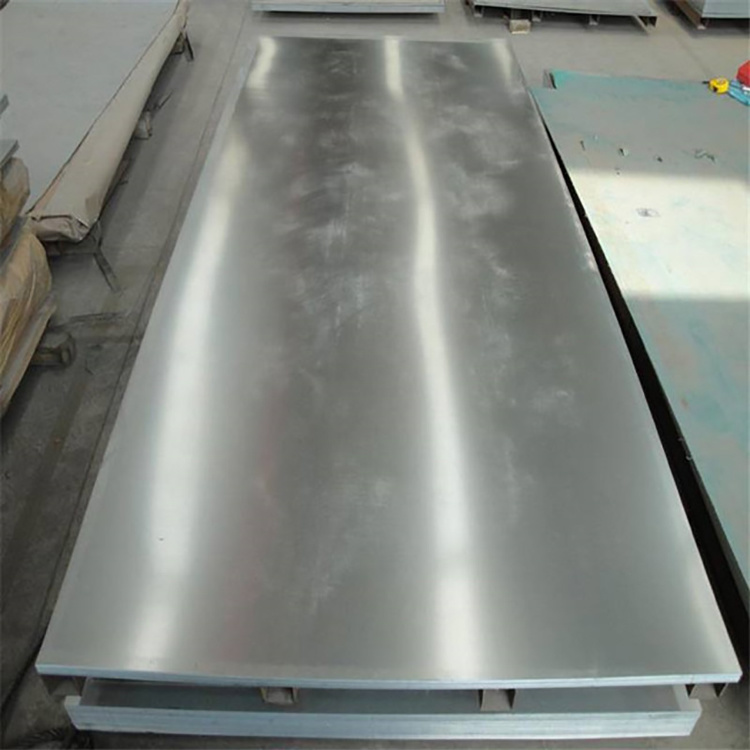

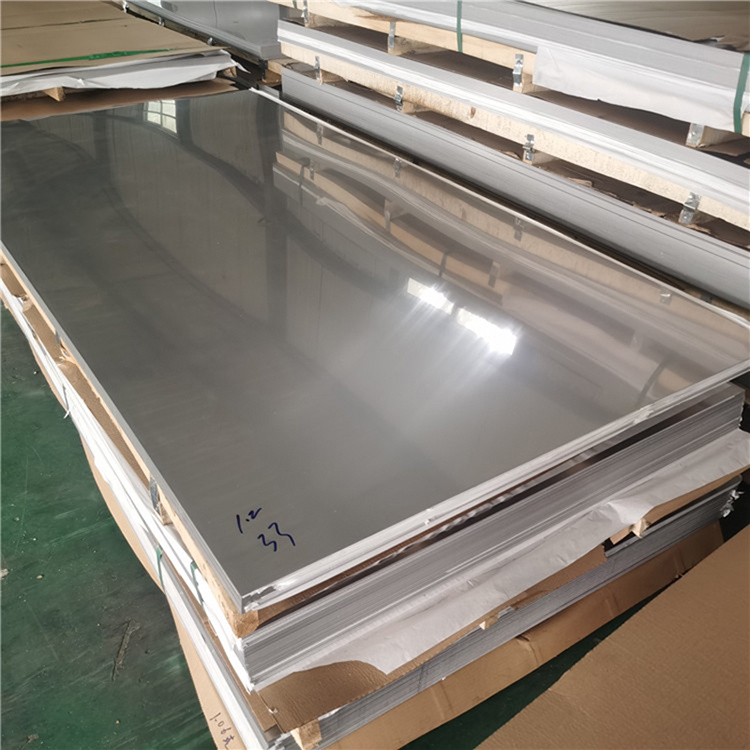

304L Stainless Steel Plate
🔥 Stop risking industrial equipment integration budgets on unverified 304L plates that crack along heat-affected weld zones or trigger immediate site rejection due to poor surface passivation and out-of-tolerance gauge thickness.
SXY Steel Group stocks premium, low-carbon ASTM A240 304L stainless steel plates optimized specifically for high-integrity chemical piping, architectural fabrication, and food processing systems where intergranular corrosion immunity after welding is absolute. Lock in your margins today using our Guaranteed 2-Hour Rapid Quote service before raw material index shifting resets your pricing grid.
Tired of slow, faceless supplier emails while your critical project procurement dead-line or project submittal cut-off closes in? Avoid costly site-inspection rejections and ensure certified mill conformity right now.
🔬 Secure Your Free Engineering Blueprint Nesting Analysis & Fabrication Yield Optimization
Uploading engineering drawings for industrial tanks, storage vessel shells, or precision structural brackets? Send over your mechanical layouts or comprehensive project Bill of Materials (BOM). The engineering team at SXY Steel Group will run an automated CAD nesting analysis to optimize sheet layout efficiency and slash material scrap rates for free.
PRODUCT DETAILS
📊 304L Stainless Steel Three-Standard Global Cross-Reference Matrix
| American Standard (ASTM / UNS) | European Standard (EN / Werkstoff) | Japanese Standard (JIS) | Standard Thickness Available (mm) |
|---|---|---|---|
| ASTM A240 UNS S30403 (304L Cold Rolled) | EN 10088-2 1.4307 | JIS G4304 SUS304L | 0.5mm / 0.8mm / 1.0mm / 1.5mm / 2.0mm / 3.0mm |
| ASTM A240 UNS S30403 (304L Hot Rolled) | EN 10028-7 1.4307 Pressure Vessel | JIS G4304 SUS304L | 4.0mm / 5.0mm / 6.0mm / 8.0mm / 10.0mm / 12.0mm |
| ASTM A240 Heavy Gauge 304L / 304 H | EN 10088-2 1.4301 / 1.4306 | JIS G4304 SUS304 | 14.0mm – 80.0mm (Plasma / Waterjet Cut-to-Size Blanks) |
🛠️ SXY Premium Value-Added Processing & Dimensional Tolerances
| Available Processing Service | Technical Implementation Limits | Guaranteed Mill Tolerances | Engineering Application Benefit |
|---|---|---|---|
| Precision Fiber Laser & Shearing | Custom shape cutting, ring circles, flange blanks, and customized strip processing | ±0.25mm Geometric Limit | Delivers ultra-clean, dross-free borders that reduce fit-up and secondary edge grinding setup labor. |
| Multi-Roller Precision Leveling | Elimination of longitudinal crown, coil curvature, and edge-wave distortions | Exceeds ASTM A480 Standard | Ensures optimal flat tracking during robotic welding passes and automatic vacuum-lift suction stacking. |
| Surface Polish Finish Lines | 2B industrial, No.4 brushed, hairline finish, or Mirror BA with protective fiber films | Ra-Targeted Control Profiles | Guarantees superior sanitation and uniform surface cleanability for pharmaceutical and dairy systems. |
• Independent Inspectors Welcome: Absolute operational transparency supporting structural thickness verification, ultrasonic testing (UT), and flat-profile mapping conducted by SGS, Bureau Veritas, or Intertek.
• Capital Protection Framework: SXY Steel Group eliminates long-distance financial risk completely by managing transactions via 100% Irrevocable Letter of Credit (L/C) at sight mechanisms.
• Rigid Metal Framing Skids: High-tensile perimeter metal straps bound to rigid wooden structural pallets eliminate horizontal load shifting or corner bending while handling rough oceanic vessel rolls.
• Discharge Port Demurrage Buffer: 14 to 21 days free demurrage terms pre-booked with maritime lines to protect your operations against customs hold-ups or port clearing friction.
| Item | Specification |
|---|---|
| Product name | 304L Stainless steel sheet |
| Grade | 304L |
| Thickness range | 0.3mm-3.0mm |
| Width range | 600mm-1500mm |
| Length | 2000mm, 2438mm, 3048mm |
| Size | 1000mm*2000mm, 1219mm*2438mm, 1219mm*3048mm, or as required |
| Finish | No. 1, No. 4, hairline, 2b, BA, 8K, embossed, PVD color coated, sand blasted, anti-fingerprint |
| Lead time | 7 to 15 working days after the receipt |
| Packing | Wooden pallet or according to customer’s request |
| Application | Interior/exterior/architectural/bathroom decoration, elevator decoration, hotel decoration, kitchen equipment, ceiling, cabinet, kitchen sink, advertising nameplate |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | – |

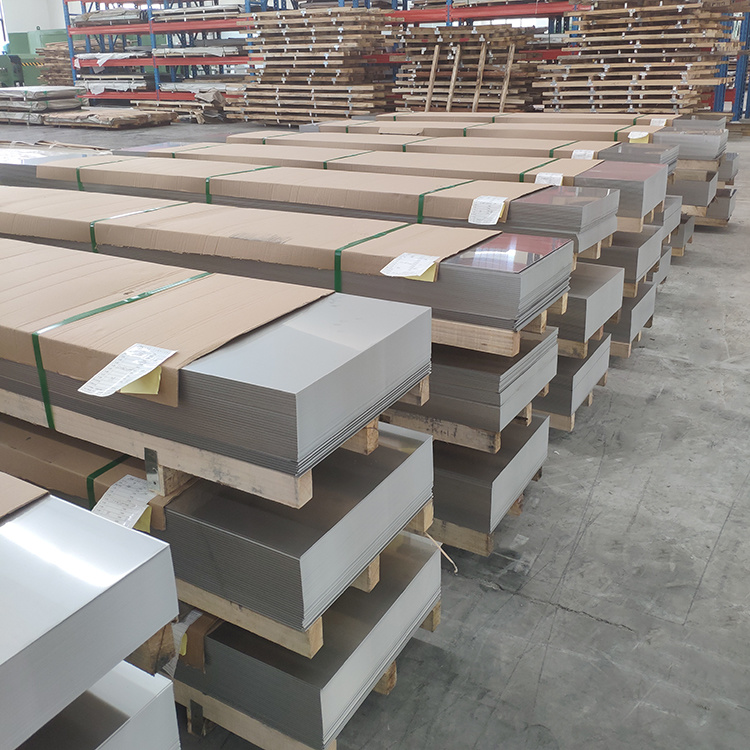

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

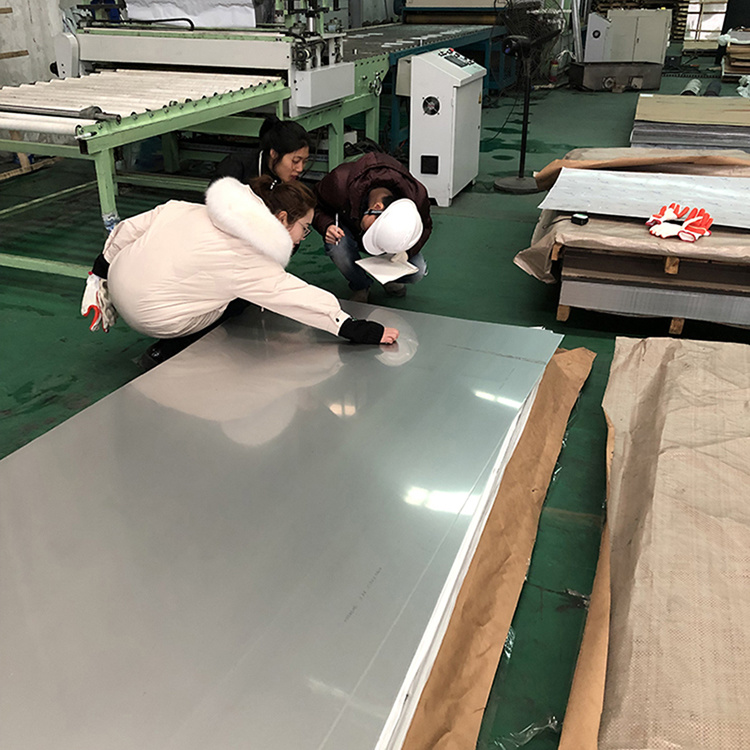

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
