Aluminum Sheet & Coil
Procure high-precision aluminum sheets and coils, engineered for superior surface finish, consistent gauge tolerance, and excellent formability across architectural, automotive, and industrial stamping applications. Our factory guarantees strict metallurgical temper conformity and full mill-test traceability—delivered with 2-hour rapid technical quotes.
Tired of material inconsistencies that cause die-cracking or surface defects in your production line? Terrified of buying sub-standard aluminum that compromises your structural engineering integrity and blows your project budget? Stop the gamble—secure certified, high-grade aluminum from our factory right now.
PRODUCT DETAILS
Aluminum Sheet/Coil Three-Standard Cross Matrix
| US Standard (ASTM) | Euro Standard (EN) | China (GB) | Temper | Thickness Range |
|---|---|---|---|---|
| ASTM B209 1xxx/3xxx | EN 485 1xxx/3xxx | GB/T 3880 1xxx/3xxx | O / H14 / H24 | 0.2mm – 6.0mm |
| ASTM B209 5xxx/6xxx (Target) | EN 485 5xxx/6xxx | GB/T 3880 5xxx/6xxx | H32 / T6 / T651 | 0.5mm – 25.0mm |
Technical QA/QC Verification
• Certification & Security: We provide EN 10204 3.1 MTCs with every shipment. To eliminate capital risk, our factory supports 100% Irrevocable Letters of Credit (L/C) at sight. We are ready for pre-shipment inspections by SGS, Bureau Veritas, or Intertek.
Logistics & Export Handling
• Port Efficiency Buffer: Our factory negotiates up to 21 days of extended free container demurrage on your Bill of Lading, protecting local clearing agents from costly administrative delays.
Product introduction
Parameters of Aluminum Coil
Aluminum Alloy Series: 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000 series, etc.Aluminum Temper: O – H112, T3 – T8, T351 – T851, etc.Thickness: 0.3mm – 6mmWidth: 900mm – 1600mm
Classification by Alloy Type1000 Series Pure Aluminum Coil2000 Series Alloy Aluminum Coil3000 Series Alloy Aluminum Coil4000 Series Alloy Aluminum Coil5000 Series Alloy Aluminum Coil6000 Series Alloy Aluminum Coil7000 Series Alloy Aluminum Coil8000 Series Alloy Aluminum Coil
Classification by Surface TreatmentColor Coated Aluminum CoilEmbossed Aluminum CoilMirror – Finish Aluminum CoilAnodized Aluminum Coil

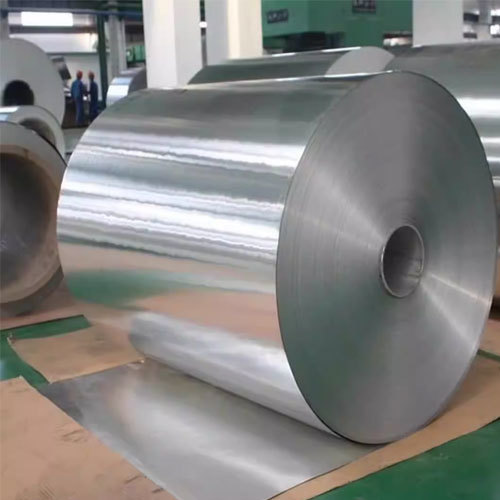

Aluminum coils (aluminium sheet rolls) are metal products processed through rolling, casting, bending at a casting and rolling mill, followed by flying shear cutting. With a density approximately one – third that of copper or steel, aluminum boasts excellent malleability and ductility, making it easy to machine and cast into aluminum coils or sheets. Combined with its consistent strength, lightweight nature, and cost – effectiveness, it is easy to see why aluminum remains a widely popular metal, catering to a vast array of precise requirements across numerous industries.
Technical data
ALUMINUM COIL SPECIFICATION:
Aluminum coil, is a rolled product, produced in a coiled form of continuous strip, and having an ID (Inner diameter) and OD (Outer diameter).Common alloy coil are used for a wide variety of applications, alloy 1050, 1060, 3003, 3105, 3005, 5052, 5754, 5083, 6061, 8011, 8021, and so on, in thickness from 0.2-100mm, in width from 100-2600mm.
HOT SALES ALUMINUM COIL:
1050 Aluminum Coil:
1050 aluminum alloy is a series of products, 1050 aluminum coil with high plasticity, corrosion resistance, electrical conductivity and good thermal conductivity characteristics.However, 1050 aluminum coil has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum coil well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
1060 Aluminum Coil:
1060 aluminum Coil for the industrial aluminum, aluminum content (mass fraction) of 99.60%, not heat treatment to strengthen.1060 aluminum coil has good corrosion resistance as well as poor machine-ability, and its machine-ability can be improved in harder (cold working) tempers, such as H16 and H18. For its features above, 1060 aluminum coil has a vast application, such as electric and chemical equipment, railroad tank cars, etc.
3003 Aluminum Coil:
3003 aluminum coil is the most widely used aluminum alloy. It is made up of aluminum, copper, iron, manganese, silicon and zinc. It is commonly used because it has great resistance to corrosion and is moderately strong. The 3003 aluminum coil is 20% stronger than 1100 grade alloys because it is fused with manganese.
3105 Aluminum Coil:
3105 aluminum coil with 98% pure aluminum and slight alloy additions for strength. 0.3% of copper is added to 3105 aluminum coil, so the conductivity turns out to be 41%. For its contents and processing technologies, 3105 aluminum coil is light in weight and it has semi-smooth surface.
5052 Aluminum Coil:
The 5052 aluminum coil is an alloy made up of 2.5 percent magnesium and 0.25 percent chromium. It’s considered to have great workability and weldability. It has medium static and high fatigue strength. The corrosion resistance of this aluminum is very good, especially in marine environments.
5754 Aluminum Coil:
5754 Alumiunm coil is the least alloyed (highest composition % of aluminium), but only by a small amount. As a wrought alloy, it can be formed by rolling, extrusion, and forging, but not casting. Aluminum 5754 has excellent corrosion resistance, especially to seawater and industrially polluted atmospheres.
ALUMINUM COIL APPLICATION:
Our aluminum coil ailable in alloys in the 1000 to 8000 series range, we stock a full range of aluminum coils to service a wide range of industries, including automotive, pharmaceutical, electrical, and food service. It is important to note that choosing the right alloy for the aluminum coil is directly dependent on the specific use case. Before purchasing any aluminum coils, it is vital you understand the specific strains the material will face during use. Properties to pay attention to include:
Tensile Strength
Wettability
Weldability
Formability
Corrosion Resistance
As a professional manufacturer and supplier of aluminum coil based in China, we also provide aluminium slit coil, anodising aluminum sheet, 5 bar aluminum tread plate, aluminum strip, aluminum sheet, diamond aluminum tread plate, and more. Whenever you have a need for any of our products, please feel free to contact us.
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Fabrication & Nesting Optimization Audit
Scaling your industrial component line? Send us your technical drawings or project BOM requirements. Our engineers will perform a free compatibility analysis to ensure the alloy temper and gauge perfectly match your forming, stamping, or structural requirements.
