PRODUCT DETAILS
About the aluminum
2024 aluminum plate is a typical duralumin in al-cop-magnesium system with reasonable composition and good comprehensive properties. The alloy is produced in many countries and is the most widely used duralumin. The characteristics of the alloy are: high strength, a certain degree of heat resistance, can be used for working parts below 150℃. The strength of 2024 alloy is higher than that of 7075 alloy at temperatures above 125℃. The formability is better in hot state, annealing state and new quenching state, and the effect of heat treatment is remarkable, but the heat treatment process is strict. Poor corrosion resistance, but with pure aluminum coating can be effectively protected; It is easy to crack when welding, but it can be welded or riveted with special technology. Widely used in aircraft structures, rivets, truck wheels, propeller components and other structural parts.
2024 aluminum plate is widely used in aircraft structure (skin, frame, rib, frame, etc.), rivets, missile components, truck wheels, propeller components and other various structural parts.
Chemical composition of 2024 aluminum plate
Si: 0.5%; Iron: 0.5%; Copper: 3.8-4.9; Manganese: 0.3-0.9; Magnesium: 1.2-1.8; Cr: 0.10; Zinc: 0.25; Titanium: 0.15; Other: 0.15; Aluminium: others;
Aluminum is a silver-white light metal, relatively soft, density 2.7g/cm3, melting point 660.4℃, boiling point 2467℃, aluminum and aluminum alloys have many excellent physical properties, has been very widely used. Aluminum has good reflection performance of light, reflecting ultraviolet light is stronger than silver, the purer aluminum is, its reflection ability is better, and the method of vacuum aluminum plating is commonly used to make high-quality mirrors. Vacuum aluminized film combined with polysilicon film becomes a cheap and lightweight solar cell material. Aluminum powder can maintain a silvery luster, often used to make paint, commonly known as silver powder. Pure aluminum conducts electricity very well, second only to silver and copper. In the electric power industry, it can replace part of copper for wires and cables. Aluminum is a good conductor of heat. It can be used to make various heat exchangers, heat dissipating materials and civil cookers in industry. Aluminum has good ductility, can be drawn into a fine wire, rolled into a variety of aluminum products, but also can be made into thinner than 0.01mm aluminum foil, widely used in packaging cigarettes, candy, etc.. Aluminum alloy has some better properties than pure aluminum, which greatly expands the application range of aluminum. For example, pure aluminum is soft, when a certain amount of copper, magnesium, manganese and other metals are added to aluminum, the strength can be greatly improved, almost equivalent to steel, and the density is small, not easy to rust, widely used in aircraft, cars, trains, ships, artificial satellites, rockets manufacturing. At -196 ° C, some steel is as brittle as glass, while some aluminum alloys increase in strength and toughness, making them cheap and lightweight cryogenic materials that can be used to store liquid oxygen and hydrogen for rocket fuel.
PRODUCT
Aluminum Sheet Specifications
| Thickness | 0.1-400mm, etc. | Length | 100-12000mm, or as required |
| Width | 20-3000mm, etc. | Standard | ASTM, AISI, JIS, GB, DIN, EN |
| Certification | ISO, SGS, BV | ||
| Surface Finish | mill, bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. | ||
| Grade | 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. |
||
| Temper | H12, H14, H16, H18, H20, H22, H24, H26, H28, H32, H36, H38, HO, H111, H112, H114, H116, H118, H321. | ||
| Payment Terms | T/T, L/C at sight, West Union | Loading Port | any port in China |
| Packing | standard export packing (inside: water proof paper, outside: steel covered with strips and pallets) | ||
| Container Size | 20ft GP: 5898mm(Length) x 2352mm(Width) x 2393mm(High) 40ft GP: 12032mm(Length) x 2352mm(Width) x 2393mm(High) 40ft HC: 12032mm(Length) x 2352mm(Width) x 2698mm(High) |
||
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

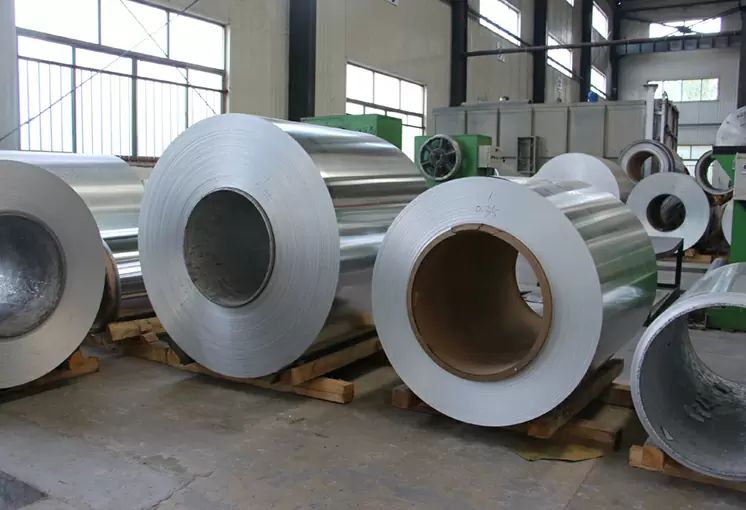

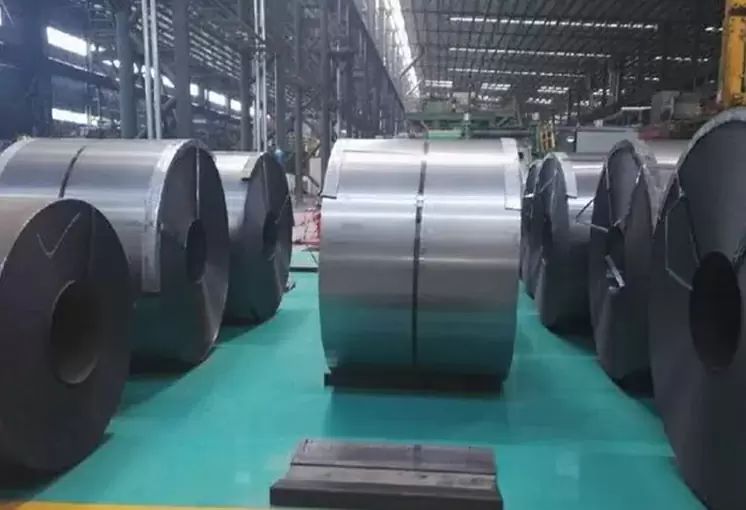

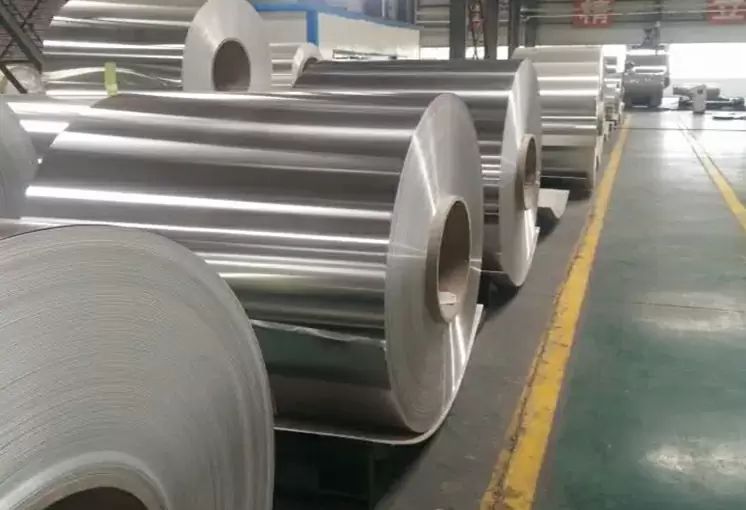

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
