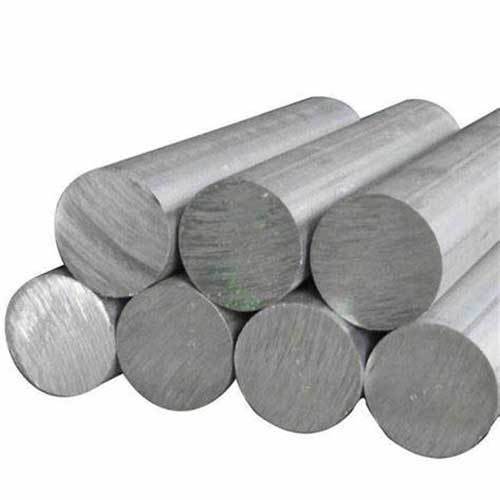

6061-T6 Aluminum Bar
Procure high-strength 6061-T6 aluminum bars, engineered for superior mechanical properties, excellent weldability, and high corrosion resistance required for structural applications, aerospace components, and automotive frames. Our factory guarantees strict T6 temper conformity, precise dimensional tolerances, and full mill-test traceability—delivered with 2-hour rapid technical quotes.
Tired of structural-grade aluminum that fails to meet load-bearing requirements or causes costly on-site welding complications? Terrified of buying sub-standard material that leads to project delays and expensive field-rejections? Stop the gamble—secure certified, high-strength 6061-T6 structural aluminum bars from our factory right now.
PRODUCT DETAILS
6061-T6 Aluminum Bar Three-Standard Cross Matrix
| US Standard (ASTM) | Euro Standard (EN) | China (GB) | Temper | Dimensions |
|---|---|---|---|---|
| ASTM B211 6061 | EN 754 6061 | GB/T 3191 6061 | T5 | 10mm – 80mm |
| ASTM B211 6061 (Target) | EN 754 6061 | GB/T 3191 6061 | T6 | 12mm – 150mm |
Technical QA/QC Verification
• Certification & Security: We provide EN 10204 3.1 MTCs with every shipment. To eliminate capital risk, our factory supports 100% Irrevocable Letters of Credit (L/C) at sight. We are ready for pre-shipment inspections by SGS, Bureau Veritas, or Intertek.
Logistics & Export Handling
• Port Efficiency Buffer: Our factory negotiates up to 21 days of extended free container demurrage on your Bill of Lading, protecting local clearing agents from costly administrative delays.
6061 aluminum alloy T6 hardness standard data and functions:
① The main alloying elements in 6061 alloy are magnesium and silicon, which have moderate strength, good corrosion resistance, weldability and good oxidation effect. Widely used in various industrial structural parts requiring a certain strength and high antibiotic corrosion, its main chemical composition: Cu:0.15-0.4; Si: 0.4-0.8; Fe: 0.7 -; Mn: 0.15; Mg: 0.8-1.2; Zinc: 0.25; Cr: 0.04-0.35; Ti: 0.15 -; 6061 aluminum plate its state T6 and T651 difference is that in general, T6 internal stress will be relatively large, processing will be deformed, the most suitable for processing state should be T651, he is on the basis of T6 tensile, eliminate internal stress.
② The main alloying elements of 6061 aluminum alloy are magnesium and silicon, and Mg2Si phase is formed. If contain a certain amount of manganese and chromium, can neutralize the bad effect of iron; Sometimes a small amount of copper or zinc is added to improve the strength of the alloy without significantly reducing its corrosion resistance; There is also a small amount of copper in the conductive material to offset the bad effects of titanium and iron on electrical conductivity; Zirconium or titanium can refine grain and control recrystallization structure. Lead and bismuth are added to improve machinability. Mg2Si is solidly dissolved in aluminum, which makes the alloy have the function of artificial age hardening. The main alloying elements in 6061 aluminum alloy are magnesium and silicon, with moderate strength, good corrosion resistance, weldability and good oxidation effect.
(3) Alcoa 6061-T651 is the main alloy of 6 series, which is a high quality aluminum alloy product after heat treatment and pre-drawing process; Alcoa 6061 has excellent machining performance, good corrosion resistance, high toughness and no deformation after processing, easy coloring film, excellent oxidation effect and other excellent characteristics
Aluminum is a silver-white light metal, relatively soft, density 2.7g/cm3, melting point 660.4℃, boiling point 2467℃, aluminum and aluminum alloys have many excellent physical properties, has been very widely used. Aluminum has good reflection performance of light, reflecting ultraviolet light is stronger than silver, the purer aluminum is, its reflection ability is better, and the method of vacuum aluminum plating is commonly used to make high-quality mirrors. Vacuum aluminized film combined with polysilicon film becomes a cheap and lightweight solar cell material. Aluminum powder can maintain a silvery luster, often used to make paint, commonly known as silver powder. Pure aluminum conducts electricity very well, second only to silver and copper. In the electric power industry, it can replace part of copper for wires and cables. Aluminum is a good conductor of heat. It can be used to make various heat exchangers, heat dissipating materials and civil cookers in industry. Aluminum has good ductility, can be drawn into a fine wire, rolled into a variety of aluminum products, but also can be made into thinner than 0.01mm aluminum foil, widely used in packaging cigarettes, candy, etc.. Aluminum alloy has some better properties than pure aluminum, which greatly expands the application range of aluminum. For example, pure aluminum is soft, when a certain amount of copper, magnesium, manganese and other metals are added to aluminum, the strength can be greatly improved, almost equivalent to steel, and the density is small, not easy to rust, widely used in aircraft, cars, trains, ships, artificial satellites, rockets manufacturing. At -196 ° C, some steel is as brittle as glass, while some aluminum alloys increase in strength and toughness, making them cheap and lightweight cryogenic materials that can be used to store liquid oxygen and hydrogen for rocket fuel.
PRODUCT
Aluminum Round Bar Specifications
| Surface Treatment | Polished |
| Technique | Cold Drawn |
| Hardness | Standard |
| Al (Min) | 99% |
| Material | Aluminum |
| Temper | T3 – T8 |
| Tolerance | ±1% |
| Sample | Available |
| Application | Construction |
| Shape | Round |
| Yield Strength (≥ MPa) | 90 |
| Ultimate Strength (≥ MPa) | 30 |
| Processing Service | Cutting |
| Surface | Polished |
| Length | 1m-6m |
| Package | Standard Seaworthy Package |
| Standard | ASTM, AISI, JIS, DIN, GB |
Aluminum Production Process

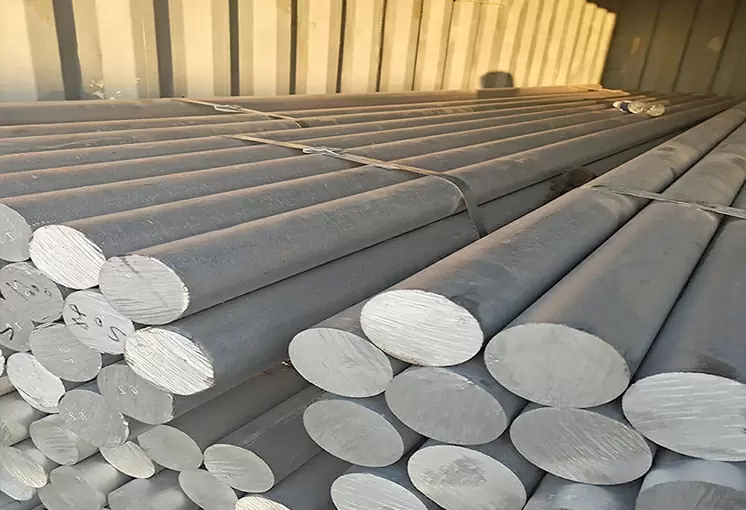

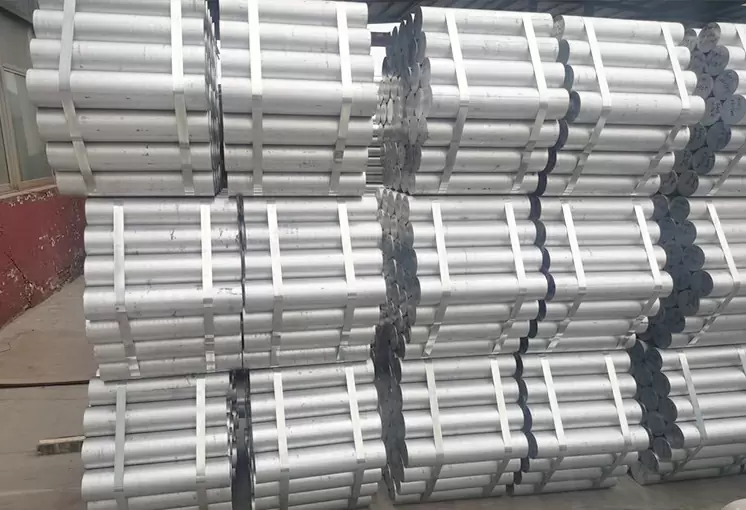

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Structural Fabrication & Compatibility Audit
Scaling your structural engineering or construction capacity? Send us your technical drawings or project BOM requirements. Our engineers will perform a free compatibility analysis to ensure the alloy temper perfectly matches your machining, bending, or welding requirements.
