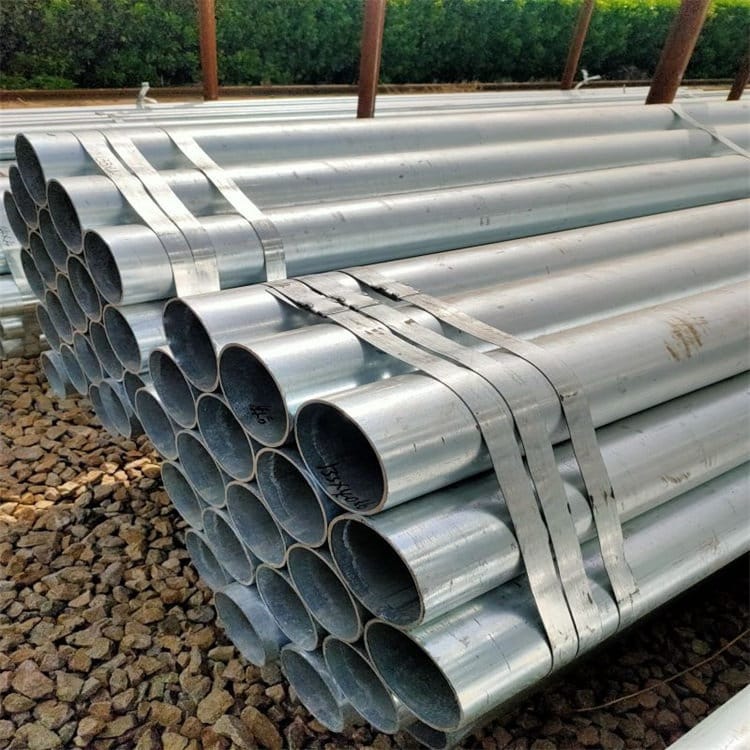

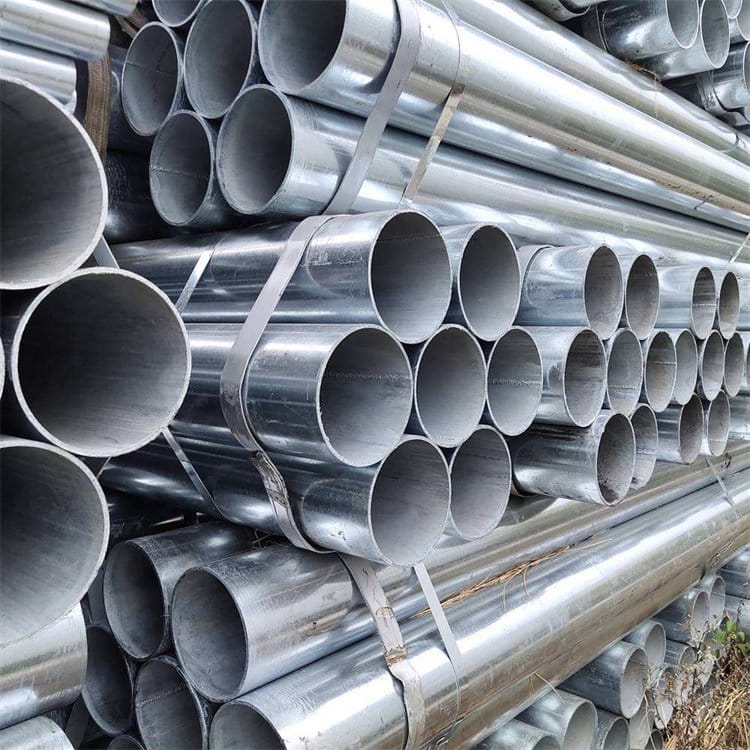

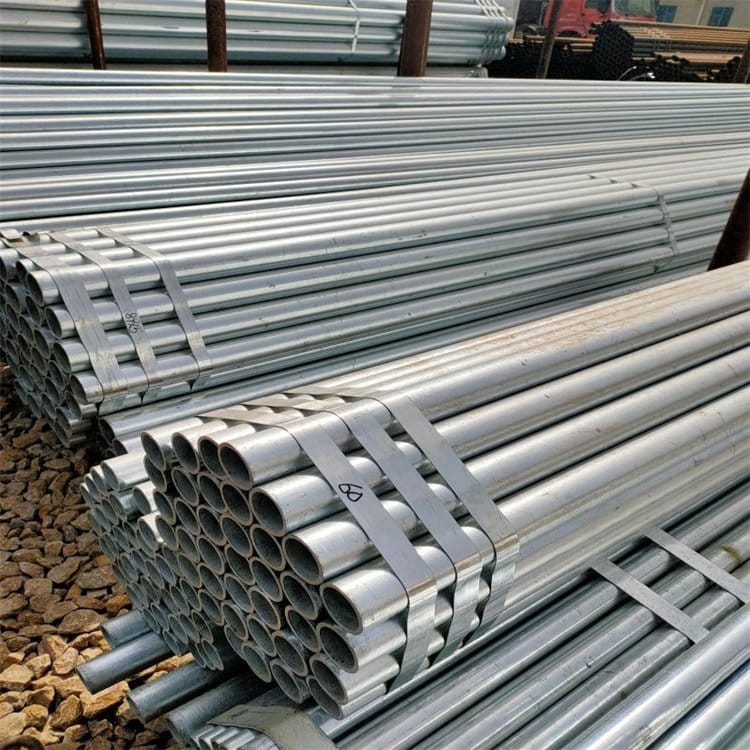

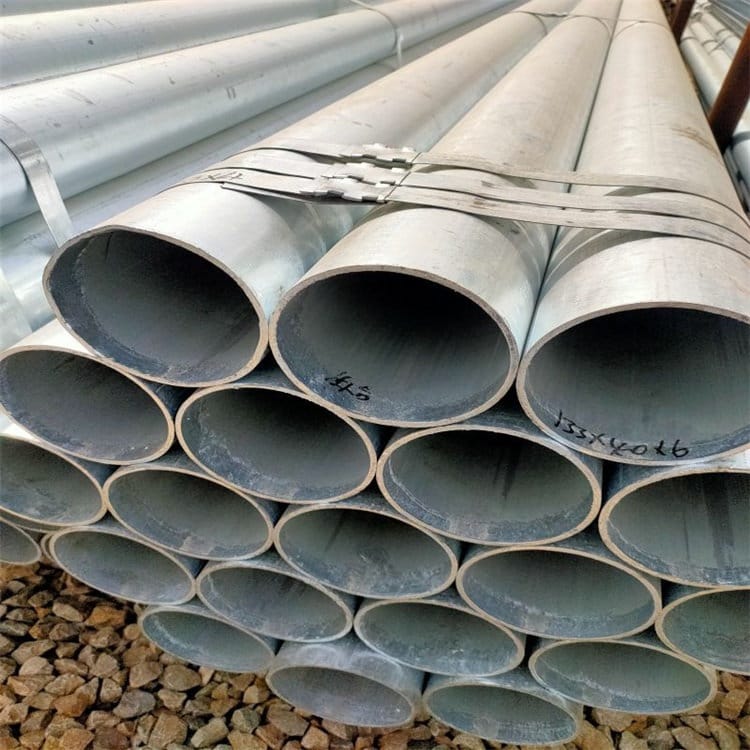

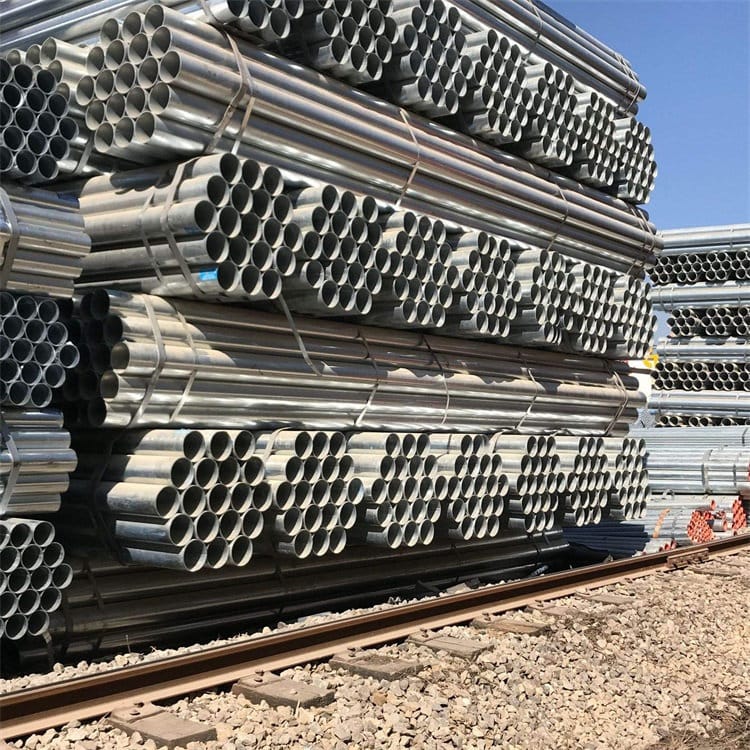

Galvanized Seamless Steel Pipe
galvanized seamless steel pipes engineered for high-pressure fluid transmission, severe marine environments, structural oil and gas applications, and heavy industrial framing. We guarantee 100% monolithic seamless integrity, uniform hot-dip galvanized zinc layer boundaries, precision dimensional tolerances, and strict compliance with global engineering parameters under our direct [2-Hour Rapid Quote] mill program.
Tired of slow supplier responses while your project bidding deadline closes in? Terrified of receiving brittle pipes that split under pressure, or failing strict engineering site inspections due to white rust scaling and thin zinc coatings? Eliminate cross-border purchasing risks and lock in your mill-verified testing logs immediately.
PRODUCT DETAILS
Premium Galvanized Seamless Pipe Three-Standard Cross Matrix
| American Standard (ASTM A53 / A106) | European Standard (EN 10216 / ISO 9329) | Japanese Standard (JIS G3454 / G3456) | Zinc Coating Weight Options | Elcometer Coating Micron Range |
|---|---|---|---|---|
| ASTM A53 Grade A Seamless | EN 10216-1 P235TR1 | JIS G3454 STPG370 | 200g/m² – 300g/m² | 28 μm – 42 μm |
| ASTM A106 Grade B / A53 Grade B | EN 10216-2 P265GH Heavy | JIS G3456 STPT410 | 300g/m² – 600g/m² Base | 42 μm – 85 μm (Ultra-Thick) |
| ASTM A106 Grade C High Pressure | EN 10216-2 P355N | JIS Custom High-Tensile | ≥ 400g/m² Custom | ≥ 56 μm Specialized |
Technical QA/QC Verification
• 100% Traceable Mill Test Certification: Deliveries are strictly backed by comprehensive EN 10204 3.1 Mill Test Certificates (MTC) outlining detailed ladle chemical mapping, elongation indices, hydrostatic pressure charts, flattening/bending test logs, and raw heat numbers. Pre-approved for independent verification by SGS, Bureau Veritas, or Intertek.
• Capital Security Guarantee: We eliminate cross-border international transactional friction completely by supporting long-term commercial structure and fluid pipeline supply agreements secured via 100% Irrevocable Letters of Credit (L/C) at sight mechanisms.
Anti-Rust Packaging & Ocean Logistics
• Fortified Structural Cargo Maritime Stowing: Piping bundles are placed on heavy timber dunnage blocks inside sea containers or breakbulk cargo bays, fortified with heavy nylon lashing straps and steel-wire chocking to eliminate metal-on-metal friction and bending across rough ocean transits.
• Complimentary Extended Port Demurrage: SXY Steel Group directly coordinates 14 to 21 days of free container and breakbulk demurrage terms at your exact discharge terminal to give ample clearance windows for your local customs brokers and regional land freight teams.
Compared with ordinary black (non-galvanized) seamless pipes, hot-dip galvanized seamless pipes offer superior corrosion protection, extending service life in harsh environments and reducing maintenance costs.
Characteristics of Hot-Dip Galvanized Seamless Pipe
Superior Corrosion Protection
The zinc coating provides both a barrier and cathodic protection, offering excellent resistance to atmospheric corrosion, moisture, and many industrial environments. This significantly increases the service life compared to uncoated pipes.
High Strength & Durability
The pipe retains the high strength, pressure resistance, and durability of the underlying seamless steel pipe. The hot-dip galvanizing process does not generally compromise the base metal’s mechanical properties.
Long Service Life & Low Maintenance
In many environments, galvanized seamless pipes can have a service life of several decades with minimal to no maintenance, offering excellent life-cycle cost-effectiveness.
| Category | Details |
|---|---|
| Product Name | Hot-Dip Galvanized Seamless Steel Pipe |
| Length | 1-12m or as required |
| Diameter | 10.3mm to 1219mm or as required |
| Standard | GB/T 8163 (Base seamless pipe), GB/T 17395 (Dimensions), with hot-dip galvanizing per GB/T 3091 or equivalent. |
| Technique | Hot-Dip Galvanized (Process applied to seamless base pipe) |
| Surface Treatment | As-galvanized spangle surface. Clean, blasting, and painting are available upon request. |
| Thickness tolerance | The wall thickness tolerance of the base seamless pipe is governed by its manufacturing standard (e.g., GB/T 8163). Common tolerances range from ±12.5% to ±15% of the nominal wall thickness, depending on pipe grade and manufacturing method. The galvanizing process adds a coating but does not alter the base pipe’s wall thickness tolerance. |
| Zinc Coating Mass | Standard Range: 200 – 600 g/m² (Total both sides). Common commercial grades are 275 g/m² and 350 g/m². Available as per customer specification. |
| Export packing | Waterproof paper and steel strip packed. Standard seaworthy export packing suitable for all modes of transport, or as required. |
Galvanized steel pipe has a welded steel pipe with a hot dip or electro galvanized layer on the surface. Galvanization can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized steel pipe has a wide range of uses, in addition to being used as a pipeline for general low pressure fluids such as water, gas and oil, it is also used as an oil well pipe and oil pipeline in the petroleum industry, especially in the marine oil fields, as an oil heater, condensation cooler and coal distillation and oil washing exchanger pipe for chemical coking equipment, and as a support frame pipe for trestle piles and mining pits, etc.
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Project Engineering Blueprint Review & Structural Pipe Nesting Optimization Assessment
Submitting detailed engineering criteria for an active fluid pipeline infrastructure network, municipal gas line tender, high-pressure industrial complex, or heavy structural frame? Upload your engineering layout drawings, custom length cut criteria, mechanical load profiles, pressure parameters, or comprehensive Bill of Materials (BOM) files below. SXY Steel Group’s technical desk will execute a nesting optimization audit to eliminate scrap loss margins and maximize your procurement yield.
