ERW Steel Pipe
ERW (Electric Resistance Welded) steel pipes engineered for high-pressure fluid transmission, industrial structural fabrication, piling projects, and low-pressure gas pipelines. We guarantee premium hot-rolled coil raw materials, advanced inline high-frequency induction welding, completely localized heat-treated weld seams, and meticulous dimensional tolerance controls under our direct [2-Hour Rapid Quote] mill program.
Tired of slow factory responses while your project bidding deadline closes in? Terrified of catastrophic seam splits, wall-thickness variations, or failing strict site inspection parameters? Eliminate construction risks and secure your mill-verified ultrasonic testing logs immediately.
PRODUCT DETAILS
Premium ERW Structural & Fluid Pipe Three-Standard Cross Matrix
| American Standard (ASTM A53 / API 5L) | European Standard (EN 10219 / EN 10217) | Japanese Standard (JIS G3444 / G3452) | Steel Grade Equivalent | Hydrostatic Test Bound |
|---|---|---|---|---|
| ASTM A53 Grade A | EN 10219 S235JRH | JIS STK400 / SGP | Carbon Steel Q235B | Factory Verified Std |
| ASTM A53 Grade B / API 5L X42 | EN 10217 P265TR1 / S355J2H | JIS STK490 / STK500 | High-Tensile Q355B/C/D | Up to 2500 PSI Max |
| API 5L Grade B / X52 | EN 10219 S355NH | JIS Custom Structural | Low Alloy Structural | 100% Computer Monitored |
Technical QA/QC Verification
• Comprehensive Traceable Mill Test Certificates: Deliveries are strictly accompanied by complete EN 10204 3.1 Mill Test Certificates (MTC) detailing precise ladle chemical execution, tensile properties, yield strengths, flattening test validation, and impact logs. Fully optimized for independent visual audits by SGS, BV, or Intertek.
• Capital Security Guarantee: We eliminate cross-border financial friction completely by accepting long-term pipeline supply and infrastructure framework contracts secured via 100% Irrevocable Letters of Credit (L/C) at sight mechanisms.
Anti-Rust Packaging & Ocean Logistics
• Fortified Maritime Hexagonal Palletizing: Pipes up to 8 inches are bound into tight hexagonal bundles using high-tensile steel banding, fitted with nylon lifting slings, and separated via timber dunnage. Large-diameter pipes are securely blocked inside breakbulk vessel holds or containers using steel wire lashing frames.
• Extended Destination Port Demurrage: SXY Steel Group coordinates 14 to 21 days of complimentary container and breakbulk demurrage direct at your discharge terminal to provide ample clearing windows for your destination customs brokers and regional land hauling teams.
ERW Steel Pipe
Pipe Type: ERW Pipe, ERW Steel Pipe, Electric Resistance Welded Pipe
Application: For Low Pressure Fluid Transmission, Machinery Manufacturing
Specification: OD: 21.3mm ~ 660mm
WT: 1mm ~ 17.5mm
LENGTH: 0.5mtr ~ 22mtr (5.8/6/11.8/12 meters, SRL, DRL)
Standard & Grade: API 5L PSL1/PSL2 Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
ASTM A53, ASTM A500, JIS G3466, ASTM A252, ASTM A178, AN/NZS 1163, AN/NZS 1074, EN10219-1, EN10217-1
End: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Production Process for ERW steel pipe:
1.Uncoiling — 2. Leveling — 3. End cutting — 4. End shearing welding — 5. Supercoil accumulator — 6. Edge cutting — 7. Ultrasonic detection — 8. Forming — 9. Electric induction welding — 10. Ultrasonic detection for weld seam — 11. Medium frequency heat treatment — 12. Air cooling — 13. Water cooling — 14. Sizing — 15. Flying cutting — 16. Flush-out — 17. Cropping — 18. Flattening testing — 19. Straightening — 20. End facing and bevelling — 21. Hydrodynamic testing — 22. Ultrasonic detection for weld seam — 23. Ultrasonic detection for pipe end — 24. Visual and dimensions inspection — 25.Weighting and measuring — 26. Marking — 27. Coating — 28. Pipe-end protection — 29. Bending — 30. Shipping
Specification of ERW steel pipe:
| Outside Diameter (mm) | Wall Thickness (mm) | Outside Diameter (mm) | Wall Thickness (mm) |
|---|---|---|---|
| 33.4 (1″) | 2.1-2.4 | Φ133 | 3.0-5.75 |
| 2.5-3.25 | 6.0-7.75 | ||
| 3.5-4.0 | 8.0-10 | ||
| 42.3 (1.2″) | 2.1-2.4 | Φ139.7 (5″) | 3.0-4.5 |
| 2.5-3.5 | 4.75-5.75 | ||
| 3.75 | 6.0-7.75 | ||
| 4.0-5.0 | 8.0-10 | ||
| 48.3 (1.5″) | 2.1-2.4 | Φ152 | 3.0-4.5 |
| 2.5-3.25 | 4.75-5.75 | ||
| 3.5-3.75 | 6.0-7.75 | ||
| 4.0-4.25 | 8.0-10.0 | ||
| 4.5-6.0 | |||
| Φ60.3 (2″) | 3.0-4.0 | Φ159 | 3.25-6.75 |
| 4.25-4.75 | 6.8-7.75 | ||
| 5.0-5.75 | 8.0-10.0 | ||
| Φ73 | 3.0-4.75 | 10.0-11.75 | |
| 4.8-5.25 | Φ165 | 3.0-6.0 | |
| 5.5-7.0 | 6.25-7.0 | ||
| Φ76.1 | / |

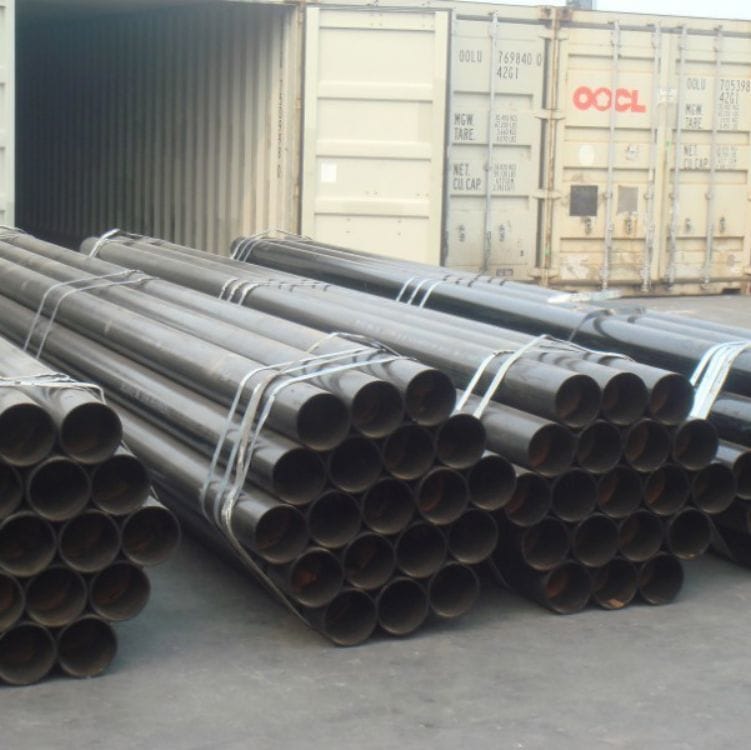

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

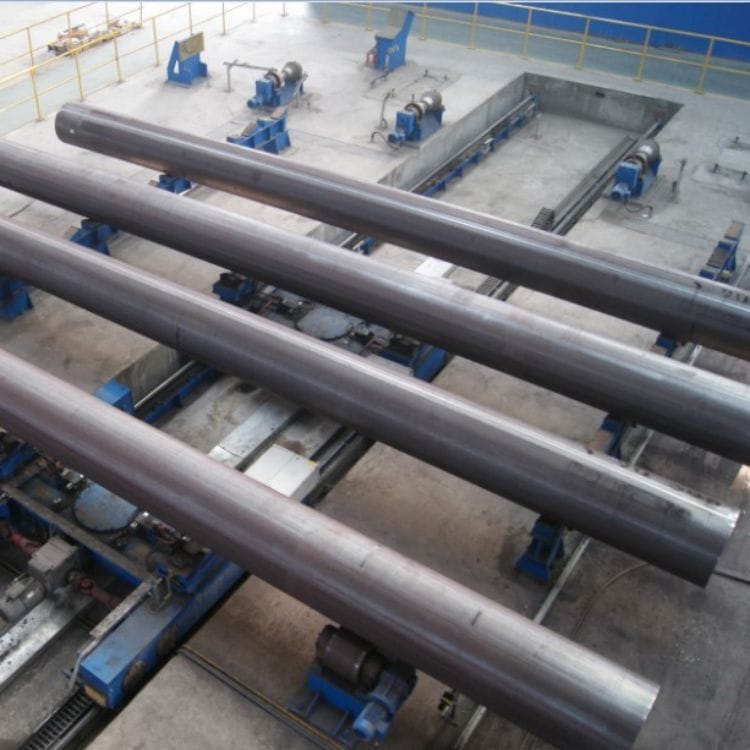

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Pipeline Nesting Allocation Audit & Engineering Construction Structural BOM Optimization
Submitting engineering criteria for an active infrastructure tender, municipal fluid network, piling layout, or industrial steel pipeline? Upload your technical structural drawings, custom length cut sheets, pressure velocity charts, or raw Bill of Materials (BOM) files below. SXY Steel Group’s engineering desk will perform a professional nesting calculation to eliminate scrap loss and maximize your project margins.
