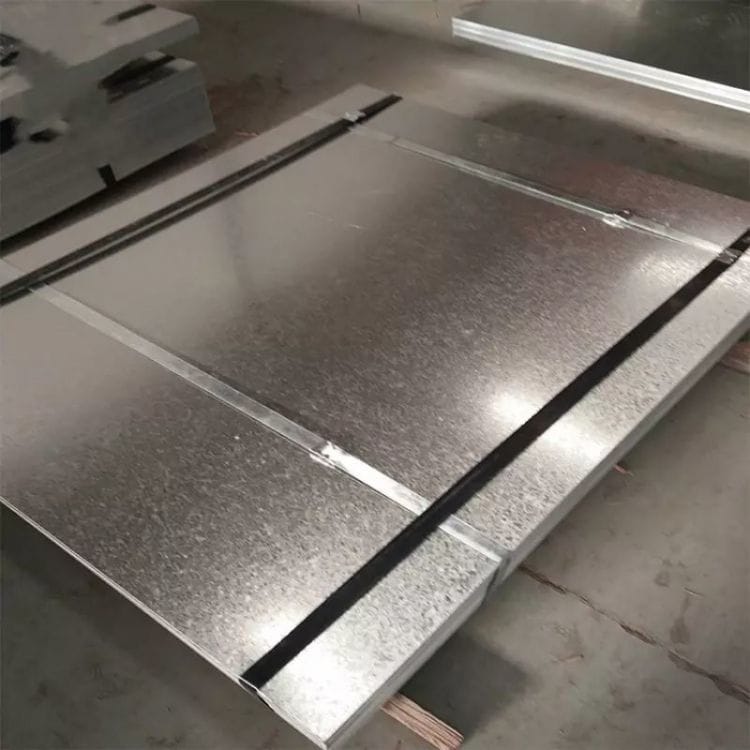

Galvanized DX52D Sheet
🔥 Stop wasting thousands on cracked materials and severe micro-splitting during complex deep-drawing stamping, or failing local inspections due to uneven zinc coatings.
SXY Steel Group supplies premium-grade Galvanized DX52D (+Z) Sheets, specifically engineered for exceptional drawing plasticity and intricate geometry forming. Featuring uniform hot-dip zinc-coating weights from Z80 to Z275 g/m² and a tight microstructural tolerance, our steel sheets eliminate fractures while providing long-lasting atmospheric rust barriers. Reserve your production batch allocation today through our Guaranteed 2-Hour Rapid Quote protocol before current alloy and zinc raw market price indices fluctuate.
Tired of slow, automated supplier emails while your stamping assembly line is sitting idle or facing project cutoff deadlines? Eliminate component inspection rejection anxieties and lock in verified mill test records right now.
PRODUCT DETAILS
Product Overview
📊 Galvanized Steel DX52D Deep-Drawing Cross-Reference Matrix
| American Standard (ASTM) | European Standard (EN) | Japanese Standard (JIS) | Available Zinc Weights / Formability Profile |
|---|---|---|---|
| ASTM A653 DDS (Deep Drawing) | EN 10346 DX52D+Z | JIS G3302 SGCD1 | Z100 / Z140 / Z180 (Ready-to-Ship Precision Slit Coils & Sheets) |
| ASTM A653 EDDS (Extra Deep Drawing) | EN 10346 DX53D+Z / DX54D+Z | JIS G3302 SGCD2 / SGCD3 | Z140 / Z200 / Z275 (High-Micron Protective Heavy Draw Blanks) |
| ASTM A653 CS Type B | EN 10346 DX51D+Z (Commercial Quality) | JIS G3302 SGCC | Z80 / Z100 Standard Profiling and Light Forming (BOM Run Only) |
• Mechanical Tensile Verification: Strict tracking of yield strengths, absolute elongation metrics ($A_{80}\%$ parameters), and zero-flaking bend testing verified via independent testing options (SGS, Bureau Veritas, Intertek).
• Capital Protection Framework: SXY Steel Group eliminates international trade risk completely by managing all bulk supply contracts under 100% Irrevocable Letter of Credit (L/C) at sight payment pathways.
• Rigid Perimeter Steel Banding: High-tensile structural steel straps secure the layout firmly to heavy wooden or metal skids, preventing edge-buckling and internal shifting during extreme rough-sea transit cycles.
• Extended Port Demurrage Safety: 14 to 21 days free demurrage terms pre-negotiated directly with shipping networks to insulate your delivery budget from regional customs clearing bottlenecks.
| Item | Specification |
|---|---|
| Product Name | DX52D / SGCD1 Galvanized Sheet |
| Thickness | 0.12mm-6.00mm |
| Width | 20mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, SUS, EN, etc. |
| Zinc Layer (Hot Galvanizing) | 15-275g/m² |
| Zinc Layer (Pre-galvanized) | 15-275g/m² |
Chemical Composition
| Standard | Grade | C | Si | Mn | P | S | Ti |
|---|---|---|---|---|---|---|---|
| For Cold Forming Chinese Standard | DX51D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 |
| DX52D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX53D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX54D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX56D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| DX57D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
| For Cold Forming Japanese Standard | SGCC | 0.15 | 0.50 | 0.80 | 0.050 | 0.030 | 0.025 |
| SGCD1 | 0.12 | 0.50 | 0.60 | 0.040 | 0.030 | 0.025 | |
| SGCD2 | 0.10 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| SGCD3 | 0.08 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| SGCD4 | 0.06 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
| For Structure Japanese Standard | SGC340 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.025 |
| SGC400 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.150 | |
| SGC440 | 0.25 | 0.50 | 2.00 | 0.200 | 0.035 | 0.150 | |
| SGC490 | 0.30 | 0.50 | 2.00 | 0.200 | 0.035 | 0.025 | |
| SGC510 | 0.30 | 0.50 | 2.50 | 0.200 | 0.035 | 0.025 | |
| For Structure AISI Standard | S220GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 |
| S250GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S280GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S320GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
| S350GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 | |
| S550GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 |
Mechanical Properties
| Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
|---|---|---|---|
| DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
| DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
| DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
| DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
| S220GD Z/ZM/AM | 220 | 300 | 20 |
| S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
| S280GD Z/ZM/AM | 280 | 360 | 18 |
| S300GD A/AM | 300 | 380 | 18 |
| S320GD Z/ZM/AM | 320 | 390 | 17 |
| S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
| S450GD A/AM | 450 | 480 | 15 |
| S550GD Z/ZM/AZ/AM | 550 | 550 | – |
Galvanized Surface Selection
| Zero Spangle | Minimized Spangle | Normal Spangle | Large Spangle |
 |  |  |  |
| Use of The Environment | Recommended Zinc Thickness |
|---|---|
| Indoor Use | Z10 or Z12 (100g/㎡ or 120g/㎡) |
| Suburbs | Z20 and Painting (200g/㎡) |
| Urban or Industrial Area | Z27 (270g/㎡) or G90 (US Standard) and painted |
| Coastal Area | Thicker than Z27 (270g/㎡) or G90 (US Standard) and painted |
| Punch or Deep Drawing Application | Thicker than Z27 (270grams/㎡) or G90 (US Standard) avoid coating peeling after stamping |
| Surface Treatment Type | Code | Features |
|---|---|---|
| Chromic Acid Treatment | C | Good corrosion resistance, suitable for bare state |
| Chromic Acid Treatment+Oiling | S | Good corrosion resistance |
| Phosphoric Acid Treatment (Including Sealing Treatment) | P | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling | Q | Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
| Phosphoric Acid Treatment (Excluding Sealing Treatment) | T | Have a certain corrosion resistance, good paint performance |
| Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling | V | Has a certain corrosion resistance, good paint performance, and prevent rust |
| Oiling | O | Prevent rust during transportation and storage |
| No Treatment | M | Suitable for immediate painting |
Material Comparison
| Chinese Standard | Japan Standard | European Standard |
|---|---|---|
| DX51D Z/DC51D Z (CR) | SGCC | DX51D Z |
| DX52D Z/DC52D Z | SGCD1 | DX52D With |
| DX53D Z/DC53D Z/DX54D Z/DC54D Z | SGCD2/SGCD3 | DX53D Z/DX54D Z |
| S220/250/280/320/350/550GD Z | SGC340/400/440/490/570 | S220/250/280/320/350GD Z |
| DX51D Z/DD51D Z (HR) | SGHC | DX51D Z |

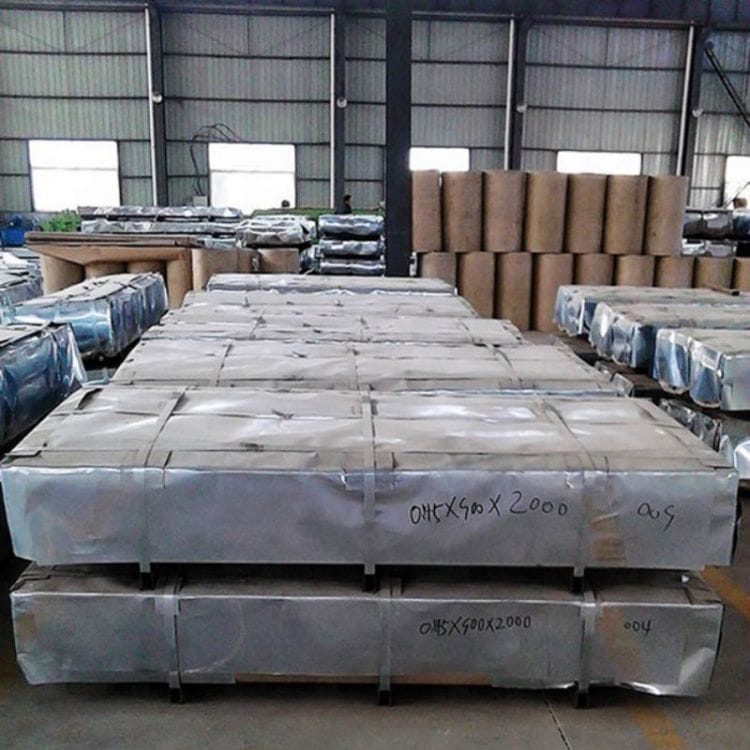

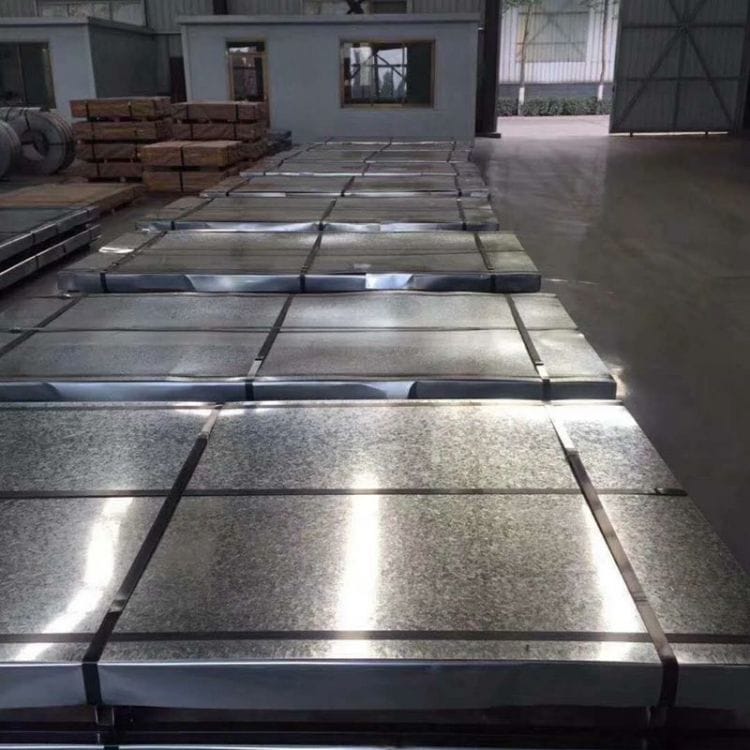

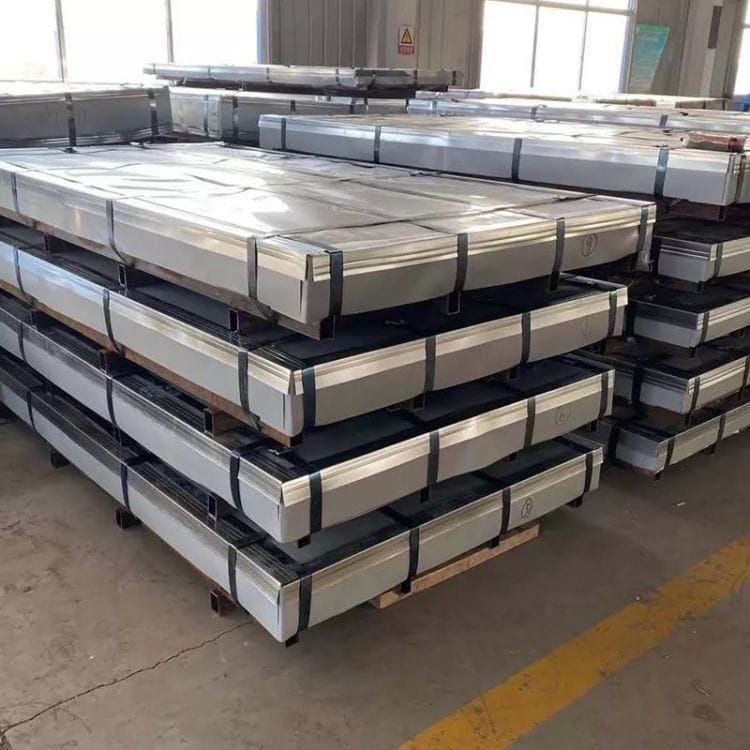

Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

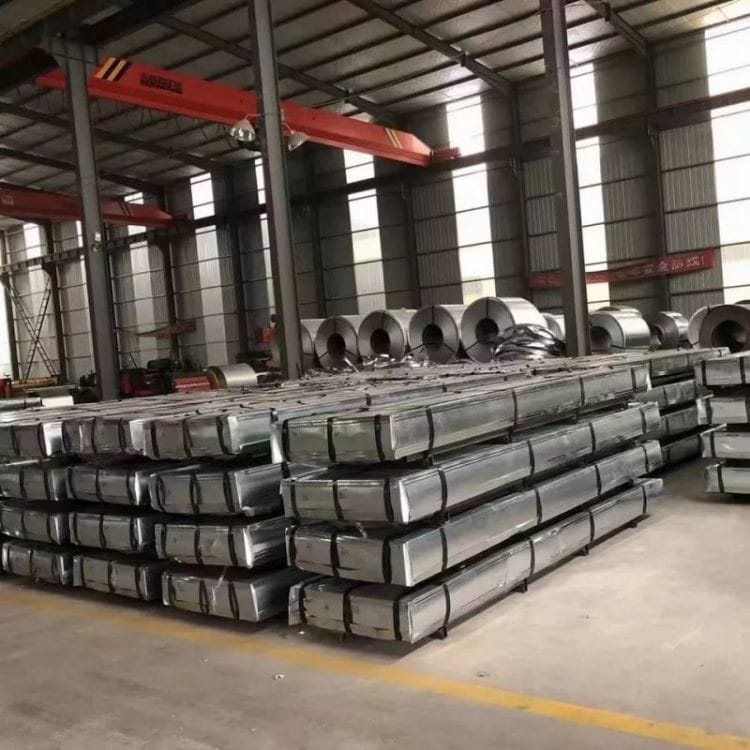

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
