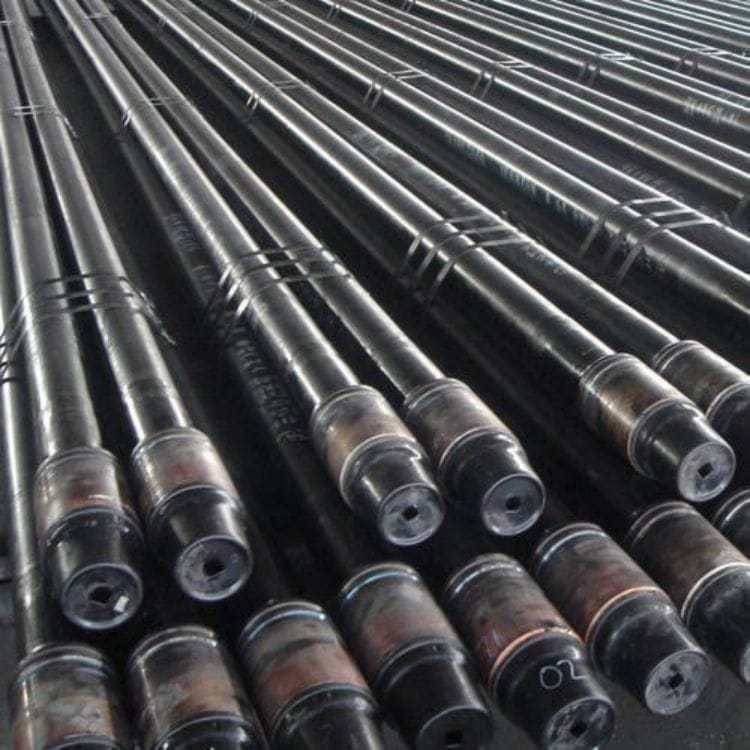

API 5DP Drill Pipe
SXY Steel Group manufactures premium, API 5DP certified friction-welded drill pipes engineered for high-torque oilfield, gas exploration, and trenchless horizontal directional drilling (HDD) projects. We guarantee premium-grade seamless tubes, precision upset forged ends, tool joints heat-treated to exact specifications, and strict compliance with global structural parameters under our direct [2-Hour Rapid Quote] mill program.
Tired of waiting days for supplier pricing while project bidding deadlines close in? Terrified of catastrophic downhole body parting, tool joint washouts, or thread galling failures on the rig? Eliminate drilling risks and secure your mill-verified API inspection logs right now.
PRODUCT DETAILS
Premium API 5DP Drill Pipe Three-Standard Cross Matrix
| American Standard (API 5DP / AISI) | European Standard (EN 10210 / ISO) | Japanese Standard (JIS G3441 / Custom) | Minimum Yield Strength | Typical Application Scope |
|---|---|---|---|---|
| Grade E75 Steel | ISO 11961 Grade E | JIS SCM440 Modified | ≥ 75,000 psi (517 MPa) | Shallow Wells, Water Well & Standard HDD |
| Grade X95 / G105 | ISO 11961 Grade X / G | JIS SCM445 Custom | ≥ 95,000 / 105,000 psi | Medium-Deep Oil Wells, High-Torque Directional |
| Grade S135 Ultra-High Tensile | ISO 11961 Grade S | JIS Custom High-Stress | ≥ 135,000 psi (931 MPa) | Ultra-Deep Wells, Extended Reach Drilling (ERD) |
Technical QA/QC Verification
• 100% Full-Length Non-Destructive Testing (NDT): SXY Steel Group enforces zero-defect production protocols. Every pipe tube undergo comprehensive ultrasonic (UT), magnetic particle (MPI), and eddy current inspections. The critical friction weld zone is subjected to automated wet MPI flaw detection and 100% real-time computerized weld parameter logging.
• API 5DP Traceability & Premium Hardbanding: Deliveries are backed by authentic EN 10204 3.1 Mill Test Certificates (MTC) specifying exact heat numbers, chemical composition, upsetting geometry, and Charpy V-notch impact toughness values. Tool joints are compatible with Arnco 100XT/300XT or TCS-Titanium hardbanding configurations.
• Capital Security Guarantee: We remove international procurement risks completely by supporting long-term structural drilling tool supply agreements backed via 100% Irrevocable Letters of Credit (L/C) at sight transaction models.
Anti-Rust Packaging & Ocean Logistics
• Thread Protection & Anti-Corrosion Treatment: Machined pin and box threads are fully coated with heavy-duty anti-galling thread storage compound compound and sealed with pressed steel-plastic composite heavy thread protectors to fully block seawater air rust.

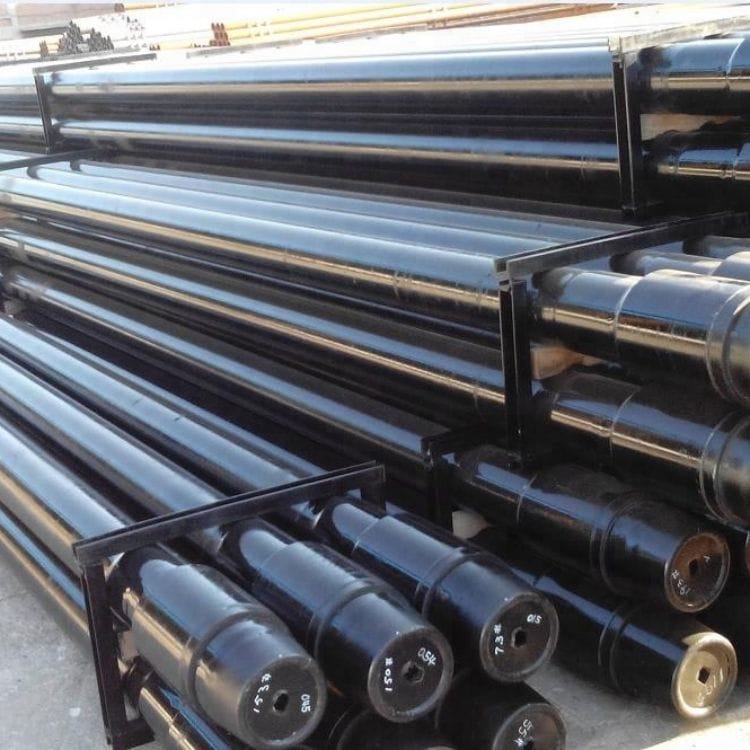

• Fortified Steel-Framed Ocean Bundling: To prevent surface scratching and mechanical bending during cross-border transit, drill pipes are secured into heavy protective steel nesting frames or strapped with heavy-duty steel bands utilizing polymer cushioning spacers.
• Extended Port Clearance Support: SXY Steel Group coordinates 14 to 21 days of free container/breakbulk demurrage terms at your specific discharge terminal to provide ample breathing room for your regional customs brokers and overland logistics teams.
Description
Drill pipes are long tubular sections of pipe that make up the majority of the drill string. They are typically a 31 foot long section of tubular pipe but may be anywhere from 18 to 45 feet in length.
Heavy weight drill pipe (HWDP) is a tubular pipe that adds weight or acts as a transitional piece in the drill string. As a transitional section of the drill string, it is placed between the drill collar and standard drill pipe to reduce fatigue failures. In other applications the HWDP is used as an additional weight to weigh down the drill string.
Heavy weight drill pipe is a medium-weight drilling pipe, (referred standards in API SPEC 7-1). It has bigger wall thickness than common drilling pipe and smaller than drill collar.
Drill collars are a component of the drill string that makes up part of the BHA. They are thicker-walled, heavier, and more rigid than drill pipes and are primarily used to weigh down the drill bit while dampening vibration and impact forces.
Drill Pipe:2-3/8″ to 7-5/8″ OD, Range 2 and 3
Heavy Weight pipe:2-3/8″ to 6-5/8″ OD, Range 2 and 3
Drill Collars:2-7/8″ to 14″
Grades: E75, X95, G105, S135

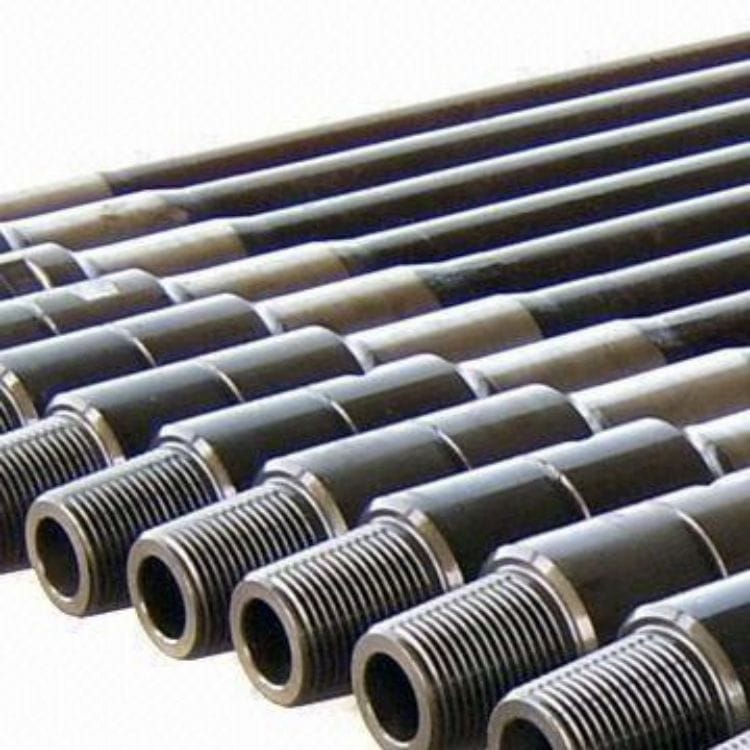

Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH.
Internal Upset: IU, EU, IEU
Specification
Drill Pipe Specifications
| Size designation (in) | Calculated weight (lb/ft) | Tool joint designation | Calculated weight | Grade | Wall thickness | Upset ends | ||
|---|---|---|---|---|---|---|---|---|
| lb/ft | Kg/m | in | mm | |||||
| 2 3/8 | 6.65 | NC26 | 6.26 | 9.32 | E.X.G.S | 0.28 | 7.11 | EU |
| 2 7/8 | 10.4 | NC31 | 9.72 | 14.48 | E.X.G.S | 0.362 | 9.19 | EU |
| 3 1/2 | 13.3 | NC38 | 12.31 | 18.34 | E.X.G.S | 0.368 | 9.35 | EU |
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.
Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Drill String Configuration Optimization & Engineering BOM Taper Analysis Assessment
Submitting technical specifications for an active rig run, exploration drilling profile, or critical HDD utility crossing? Upload your planned well path trajectory, required tensile yield boundaries, outer diameter requirements, or engineering Bill of Materials (BOM) data below. SXY Steel Group’s engineering desk will calculate your torque margins and optimize tool joint profiles to minimize risk downhole.
