6063 Aluminum Foil
Procure high-formability 6063 aluminum foil, engineered for superior surface finish, excellent extrusion characteristics, and precise gauge control required for architectural trim, decorative laminates, and specialized thermal management systems. Our factory guarantees strict metallurgical temper conformity, precise dimensional tolerances, and full mill-test traceability—delivered with 2-hour rapid technical quotes.
Tired of material inconsistencies or gauge variations stalling your architectural fabrication project? Terrified of buying sub-standard foil that leads to surface defects or costly project-wide rejections? Stop the gamble—secure certified, high-formability 6063 aluminum foil from our factory right now.
PRODUCT DETAILS
6063 Aluminum Foil Three-Standard Cross Matrix
| US Standard (ASTM) | Euro Standard (EN) | China (GB) | Temper | Gauge Range |
|---|---|---|---|---|
| ASTM B479 6063 | EN 546 6063 | GB/T 3198 6063 | O (Soft) | 0.006 – 0.2mm |
| ASTM B479 6063 (Target) | EN 546 6063 | GB/T 3198 6063 | T5/T6 | 0.01 – 0.5mm |
Technical QA/QC Verification
• Certification & Security: We provide EN 10204 3.1 MTCs with every shipment. To eliminate capital risk, our factory supports 100% Irrevocable Letters of Credit (L/C) at sight. We are ready for pre-shipment inspections by SGS, Bureau Veritas, or Intertek.
Logistics & Export Handling
• Port Efficiency Buffer: Our factory negotiates up to 21 days of extended free container demurrage on your Bill of Lading, protecting local clearing agents from costly administrative delays.
About the aluminum
6063 aluminum alloy material. The main alloy elements are magnesium and silicon, with excellent machining performance, excellent weldability, extrusion and electroplating, good corrosion resistance, toughness, easy to polish, color film, excellent anodic oxidation effect, is a typical extrusion alloy. 6063 aluminum alloy profile with its good plasticity, moderate heat treatment strength, good welding performance and anodic oxidation treatment, gorgeous surface color and many other advantages, is widely used in building profiles, irrigation pipes, for vehicles, platforms, furniture, elevators, fences and other tubes, bars, profiles.
6063 is a low alloyed Al-Mg-Si high plastic alloy. It has many valuable features: 1. Heat treatment, high impact toughness, not sensitive to the gap. 2. Excellent welding performance and corrosion resistance, no stress corrosion cracking tendency, in the heat treatment can be strengthened aluminum alloy, Al-Mg-Si alloy is the only alloy without stress corrosion cracking phenomenon. 3. After processing, the surface is very smooth and easy to anodize and color. Its disadvantage is that after quenching, if parked at room temperature for a period of time, the aging will bring adverse effects on the strength (parking effect).
Aluminum is a silver-white light metal, relatively soft, density 2.7g/cm3, melting point 660.4℃, boiling point 2467℃, aluminum and aluminum alloys have many excellent physical properties, has been very widely used. Aluminum has good reflection performance of light, reflecting ultraviolet light is stronger than silver, the purer aluminum is, its reflection ability is better, and the method of vacuum aluminum plating is commonly used to make high-quality mirrors. Vacuum aluminized film combined with polysilicon film becomes a cheap and lightweight solar cell material. Aluminum powder can maintain a silvery luster, often used to make paint, commonly known as silver powder. Pure aluminum conducts electricity very well, second only to silver and copper. In the electric power industry, it can replace part of copper for wires and cables. Aluminum is a good conductor of heat. It can be used to make various heat exchangers, heat dissipating materials and civil cookers in industry. Aluminum has good ductility, can be drawn into a fine wire, rolled into a variety of aluminum products, but also can be made into thinner than 0.01mm aluminum foil, widely used in packaging cigarettes, candy, etc.. Aluminum alloy has some better properties than pure aluminum, which greatly expands the application range of aluminum. For example, pure aluminum is soft, when a certain amount of copper, magnesium, manganese and other metals are added to aluminum, the strength can be greatly improved, almost equivalent to steel, and the density is small, not easy to rust, widely used in aircraft, cars, trains, ships, artificial satellites, rockets manufacturing. At -196 ° C, some steel is as brittle as glass, while some aluminum alloys increase in strength and toughness, making them cheap and lightweight cryogenic materials that can be used to store liquid oxygen and hydrogen for rocket fuel.
PRODUCT

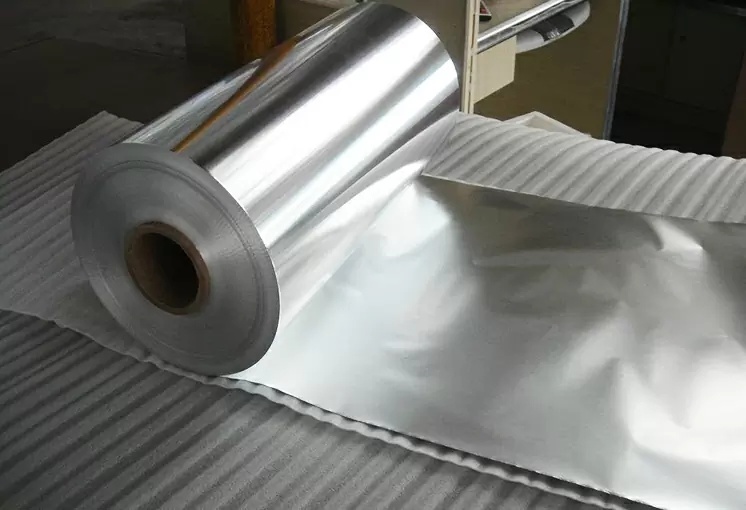

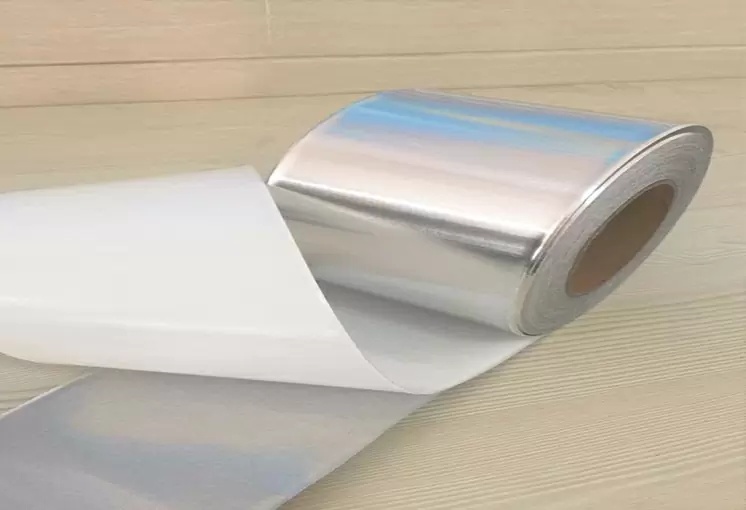

Aluminum Foil Specifications
| Standard | ASTM, GB, JIS, AISI, EN |
| Thickness | 0.006mm (6micron) – 0.2mm (200micron) |
| Width | 120-1500 mm (tolerance: ±1.0mm) |
| Temper | O, F, H12, 114, H18, H22, H24, H26, H32, etc. |
| Application | Aluminum foil is widely used in food, beverage, cigarette, medicine, photographic plate, household articles, etc. It is usually used as its packaging material, electrolytic capacitor materials, insulation materials for buildings, vehicles, ships and houses. |
| Price Term | Ex-work, FOB, CFR, CIF, etc. |
| Delivery Time | 20-30 days. Standard size is in stock, prompt delivery or as order’s quantity. |
| Package | Export standard package, Carton box or wooden case, or waterproof paper, or as customer’s request. The inner size of container is below: |

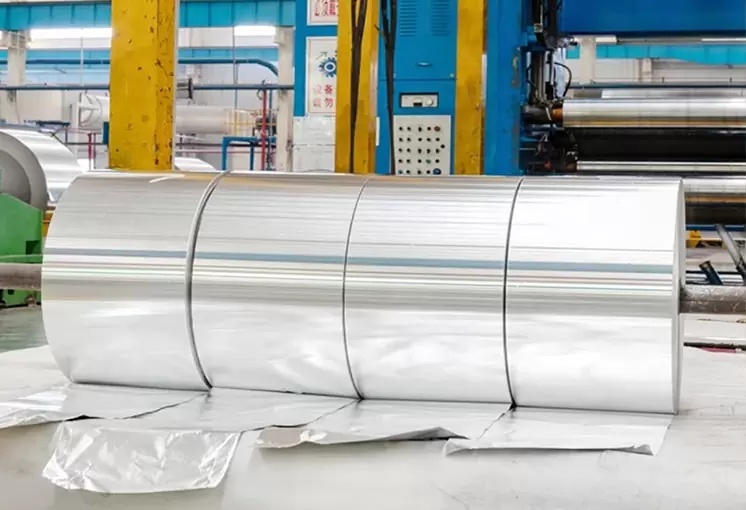

Aluminum Production Process
Packing and shipping
Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO/BIS etc certificate.All the customers give good appreciation to our products.We are glad to be your good partner.
Application Areas
Steel is widely used in steel structure workshops, bridge frames, main structures of high-rise buildings, and infrastructure construction (such as highways, oil and gas pipelines). Its high strength properties ensure load-bearing stability and seismic performance. In ship manufacturing, steel is used to build hull structures, decks, and internal components. Hot-rolled coils rely on their load-bearing capacity to adapt to harsh environments.

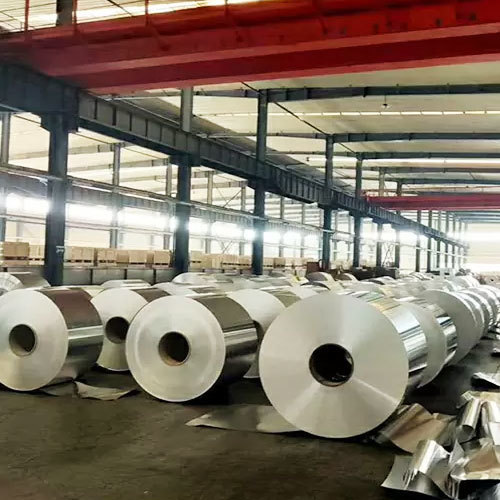

Factory workshop
With a commitment to excellence, innovation, and sustainability, the company has established itself as a trusted partner in the international steel industry.After nearly two decades of relentless endeavour, our client base now spans over 110 countries and regions across Europe, the Middle East, South America, and Southeast Asia.
Free Technical Fabrication & Compatibility Audit
Scaling your architectural or industrial capacity? Send us your technical drawings or project BOM requirements. Our engineers will perform a free compatibility analysis to ensure the alloy temper and gauge perfectly match your stamping, forming, or laminating requirements.
